Remote Keyless Entry Transmitter Out Of Synchronization

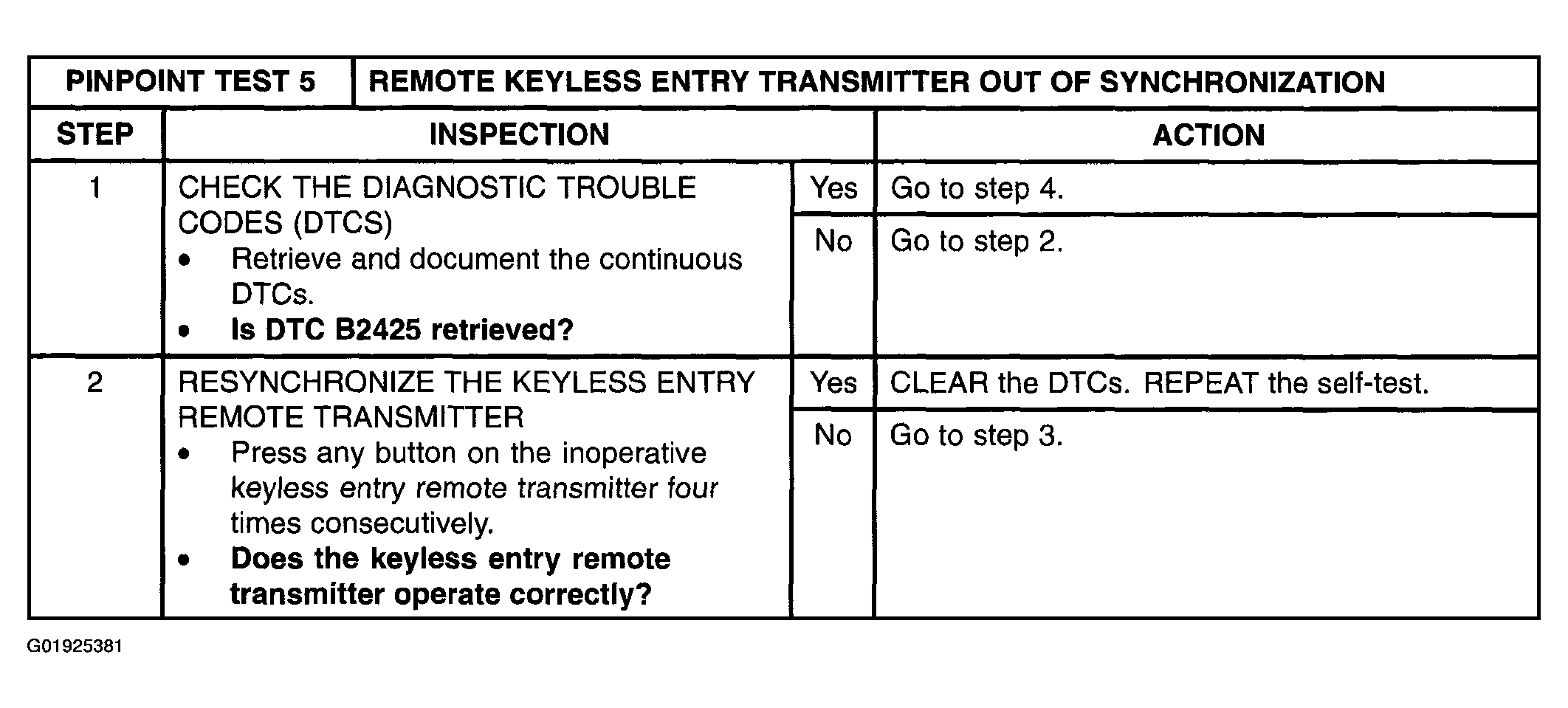

Fig 1: Remote Keyless Entry Transmitter Out Of Synchronization (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

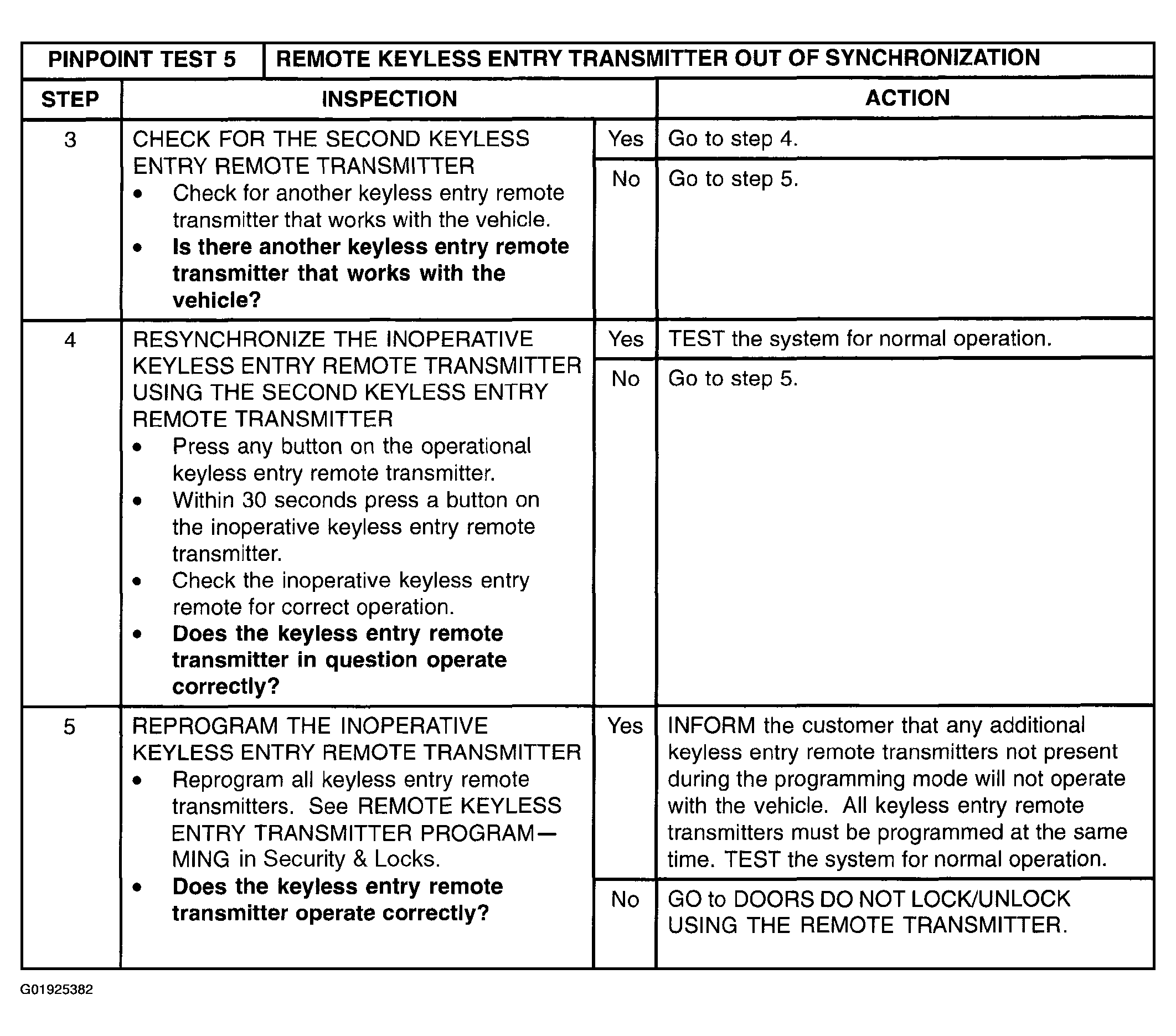

Fig 2: Remote Keyless Entry Transmitter Out Of Synchronization (Steps 3-5)

Courtesy of MAZDA MOTORS CORP.
