Instrument Panel Removal/Installation: Notes

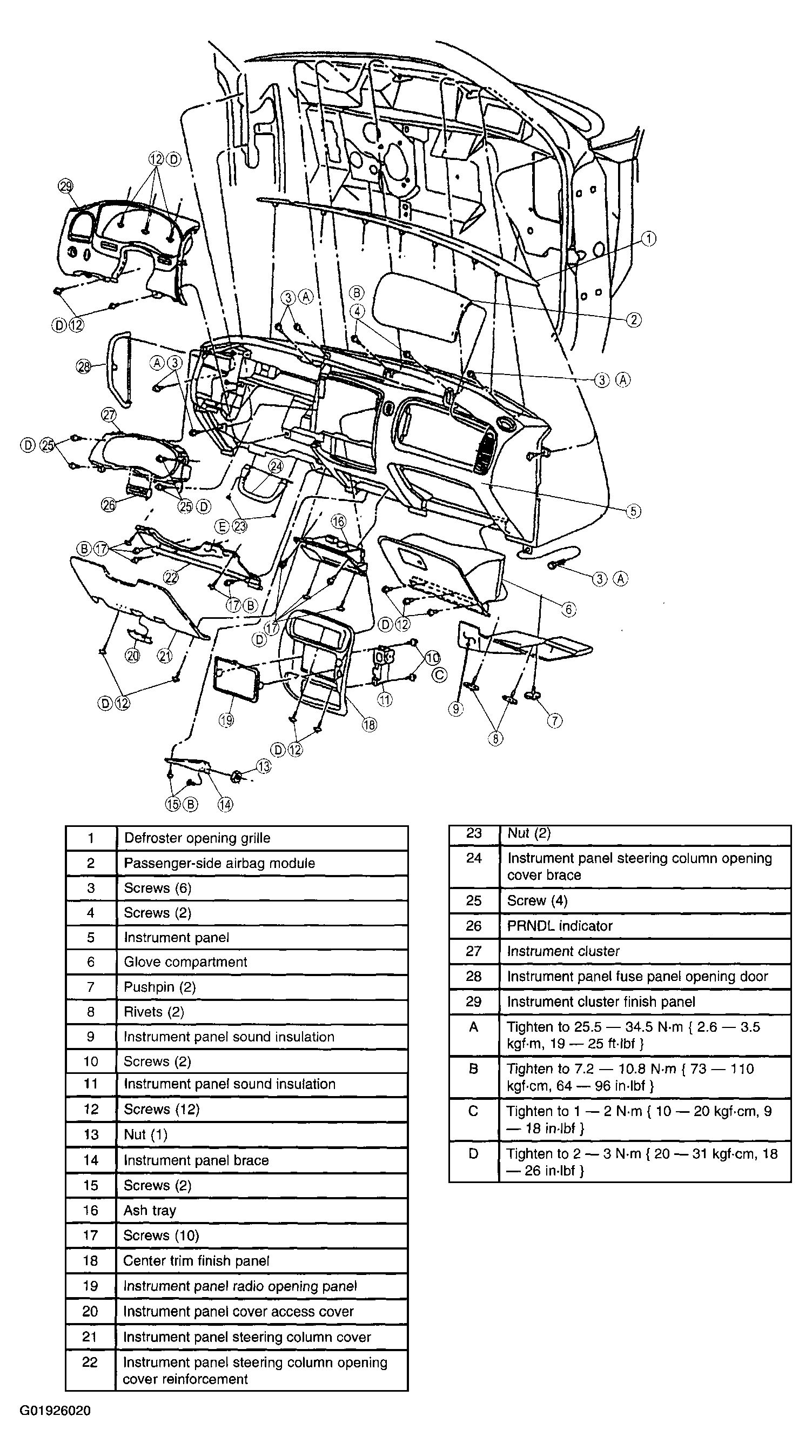

Fig 1: Instrument Panel Components
G01926020Courtesy of MAZDA MOTORS CORP.
