Ignition Switch/Steering Lock
›
Troubleshooting (Power Systems)
›
Ignition Switch Is Inoperative
Ignition Switch Is Inoperative

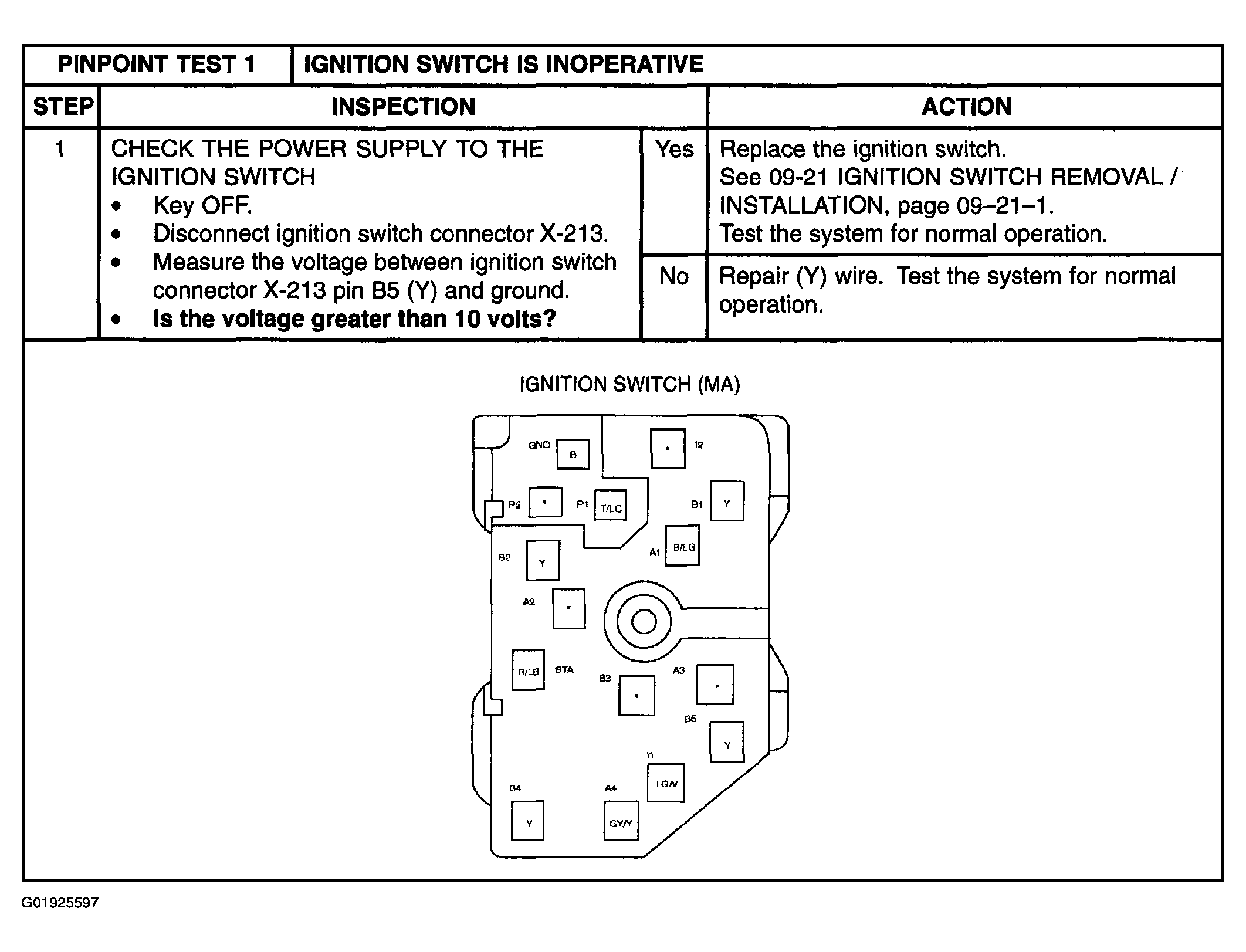

Fig 1: Diagnosis Procedure -- Ignition Switch Is Inoperative
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
