No Power In Acc

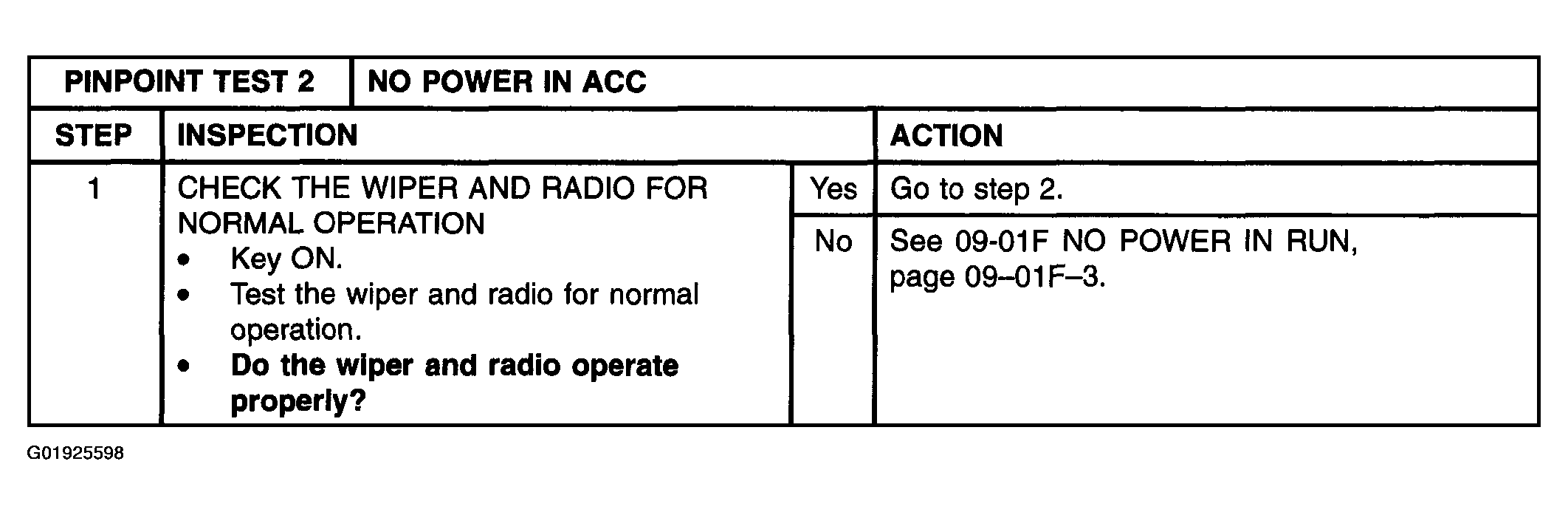

Fig 1: Diagnosis Procedure -- No Power In ACC (Step 1)
Courtesy of MAZDA MOTORS CORP.

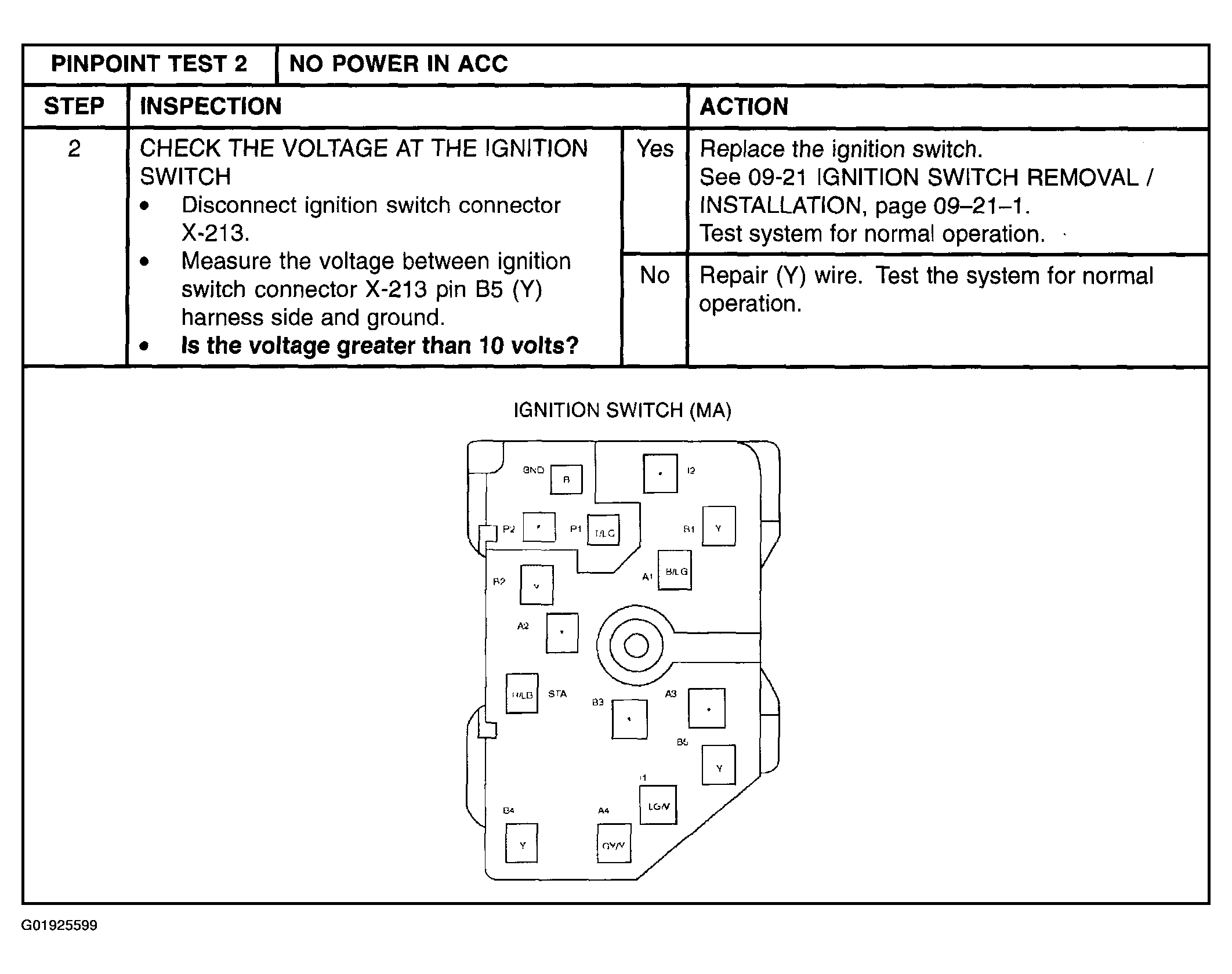

Fig 2: Diagnosis Procedure -- No Power In ACC (Step 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
