Installation Note

  1. Install in reverse order of removal.
    • Use a heavy duty riveter to install the new rivets.

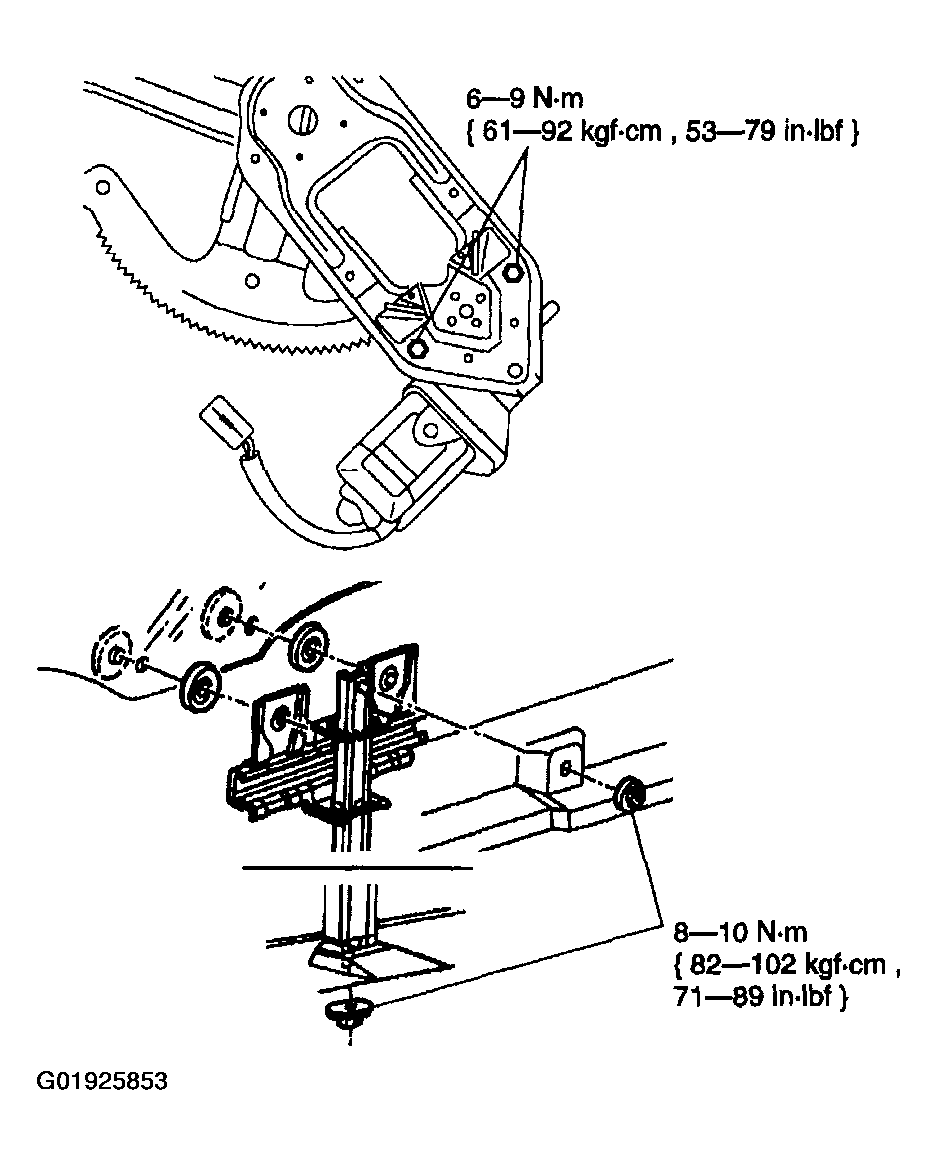

    Fig 1: Installing Motor
    G01925853Courtesy of MAZDA MOTORS CORP.
