Axle Retainer Bracket Front Removal/Installation

Raise the vehicle on a hoist; see JACKING .
Remove the bushing through-bolt.

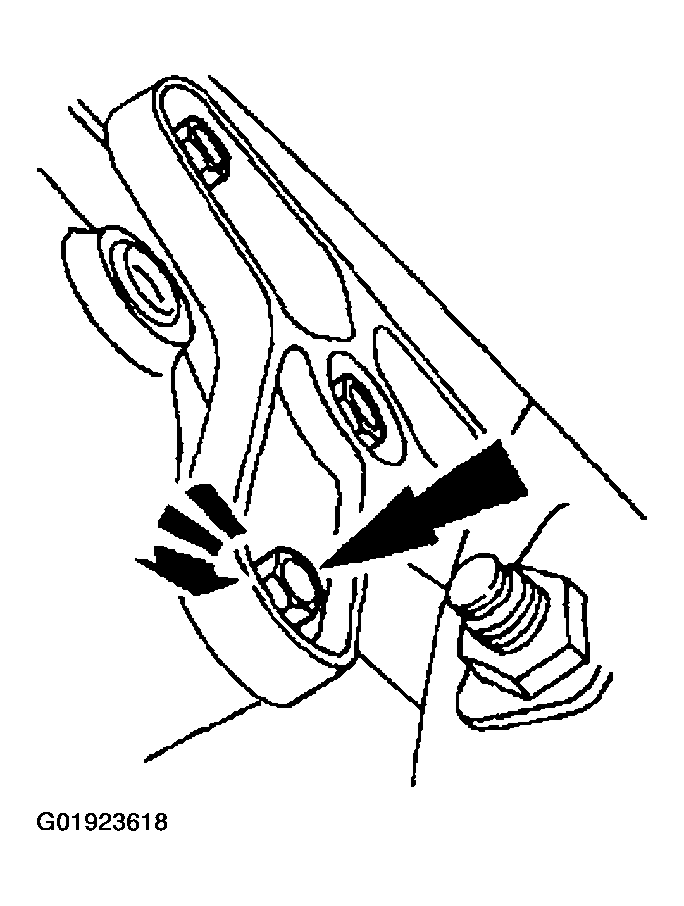

Fig 1: Locating Bushing Through-Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the three retainer bracket bolts.

Fig 2: Locating Retainer Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
Tightening torque: Retainer Bracket Bolts 6491 Nm {6.59.3 kgfm, 4767 ft.lb.}

Tightening torque: Bushing Through Bolt 6080 Nm {6.18.2 kgfm, 4559 ft.lb.}
