Horn Switch Removal/Installation

Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
Disconnect the horn wire from the switches (1).
Remove the horn switch screws and remove the switches (2).

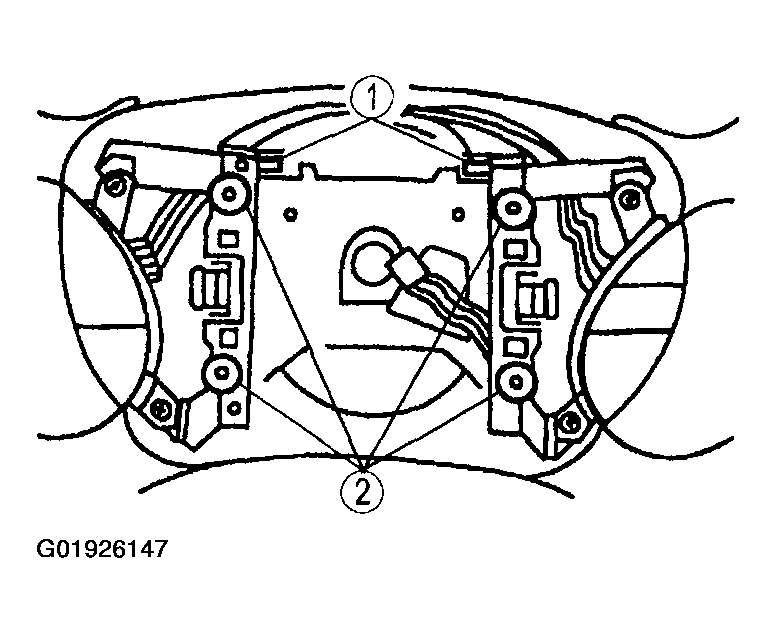

Fig 1: Removing Horn Switch
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Tightening torque
1. 6.5-7.5 N.m (58-66 in.lbf)
Prove out the air bag system. See DIAGNOSTICS .
