Indicator/Warning Bulb Removal/Installation

WARNING:

Illumination bulbs are pressurized and may shatter if improperly handled. Wear eye protection when replacing illumination bulbs.

Remove the instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .
Remove the illumination sockets and bulbs.

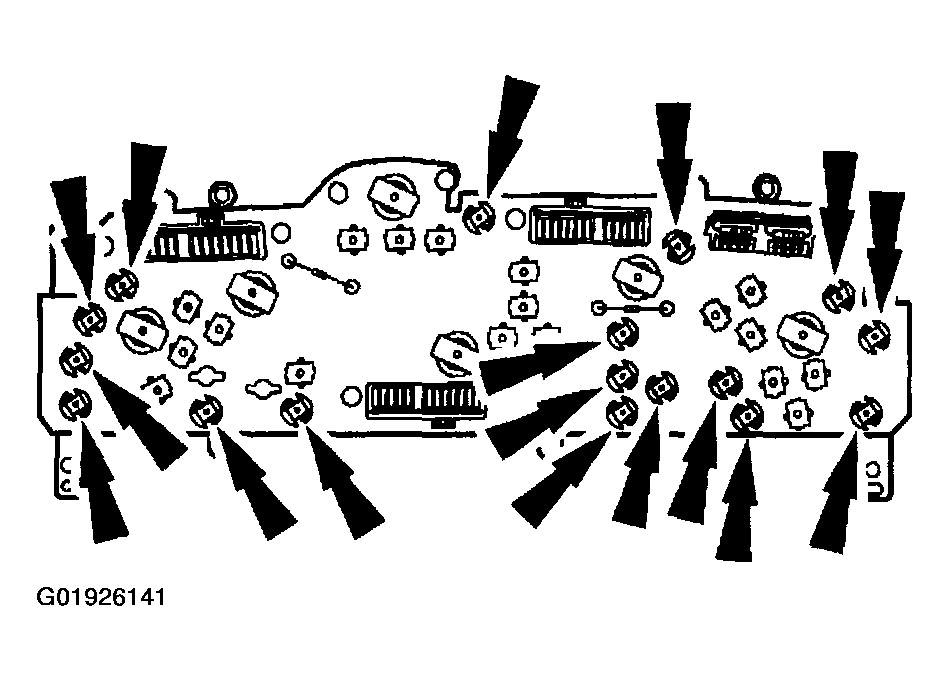

Fig 1: Removing Illumination Sockets And Bulbs
Courtesy of MAZDA MOTORS CORP.
Remove the indicator sockets and bulbs.

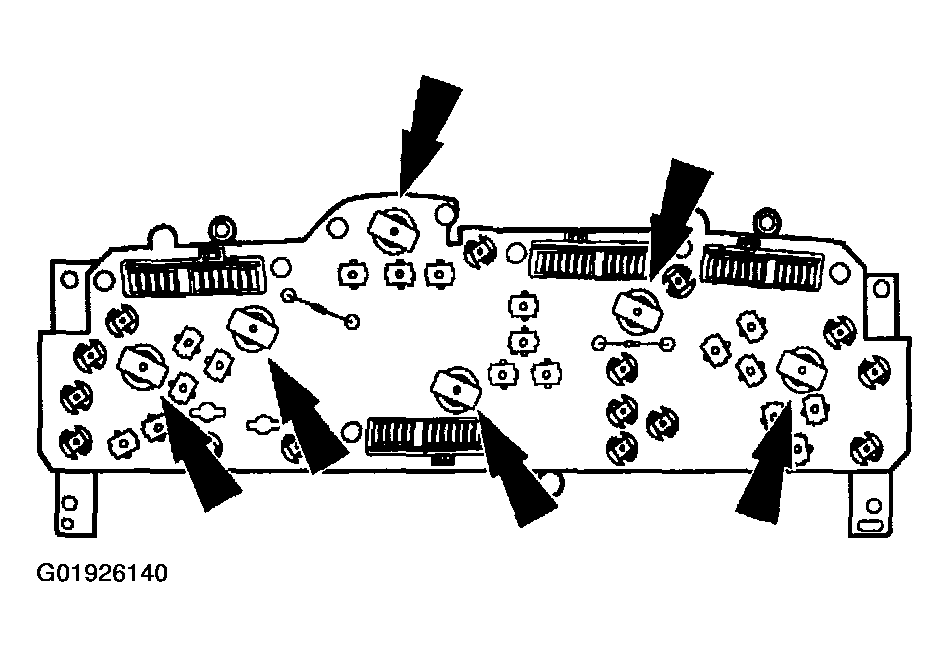

Fig 2: Removing Indicator Sockets And Bulbs
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
