Technical Data (Engine Mechanical)
›
Cooling System Specifications
Cooling System Specifications

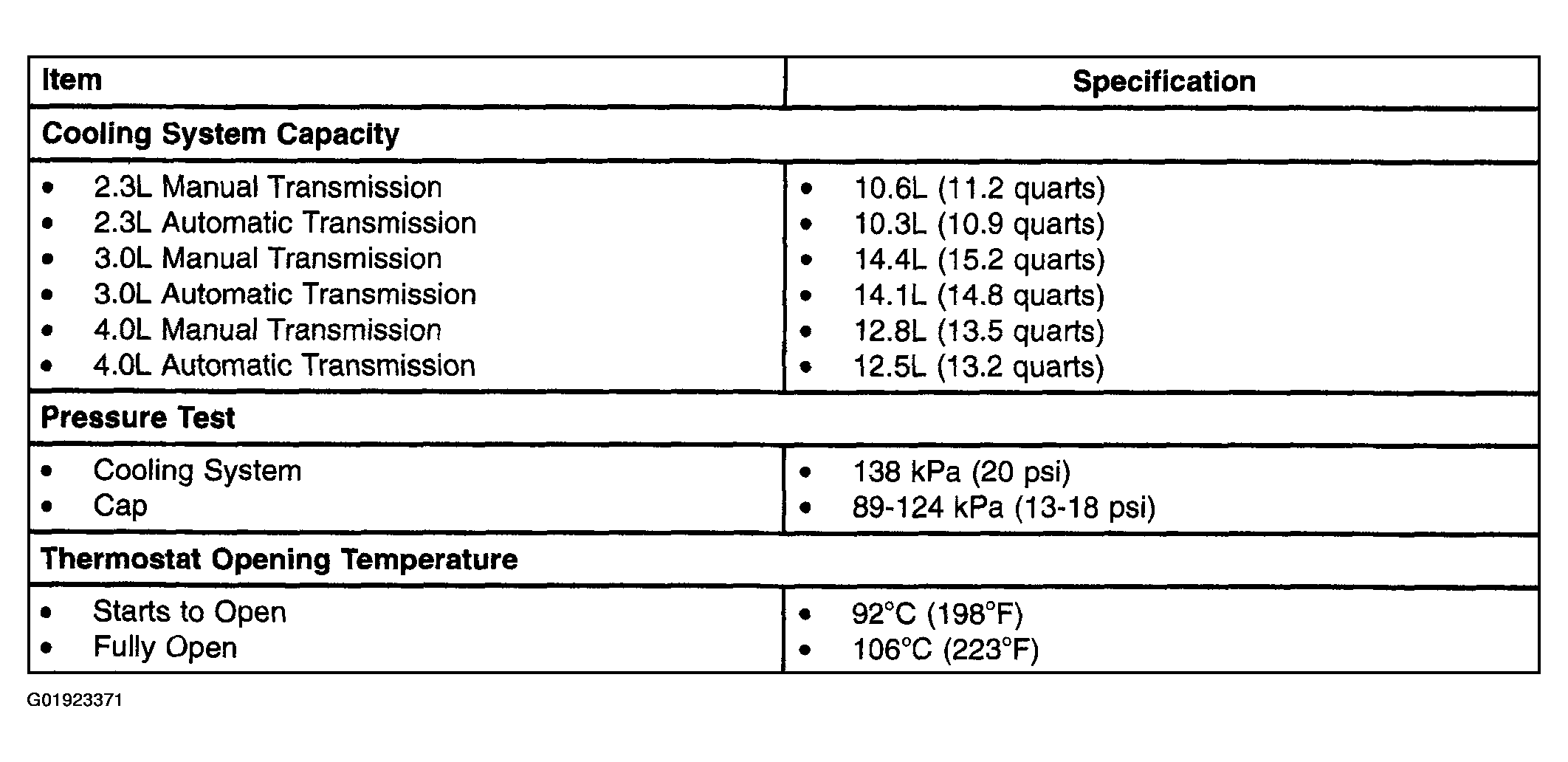

Fig 1: Identifying Cooling System Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
