CII Pump Removal Note

Remove the pump pulley; see POWER STEERING PUMP PULLEY REMOVAL/INSTALLATION .
Disconnect the power steering pressure hose.

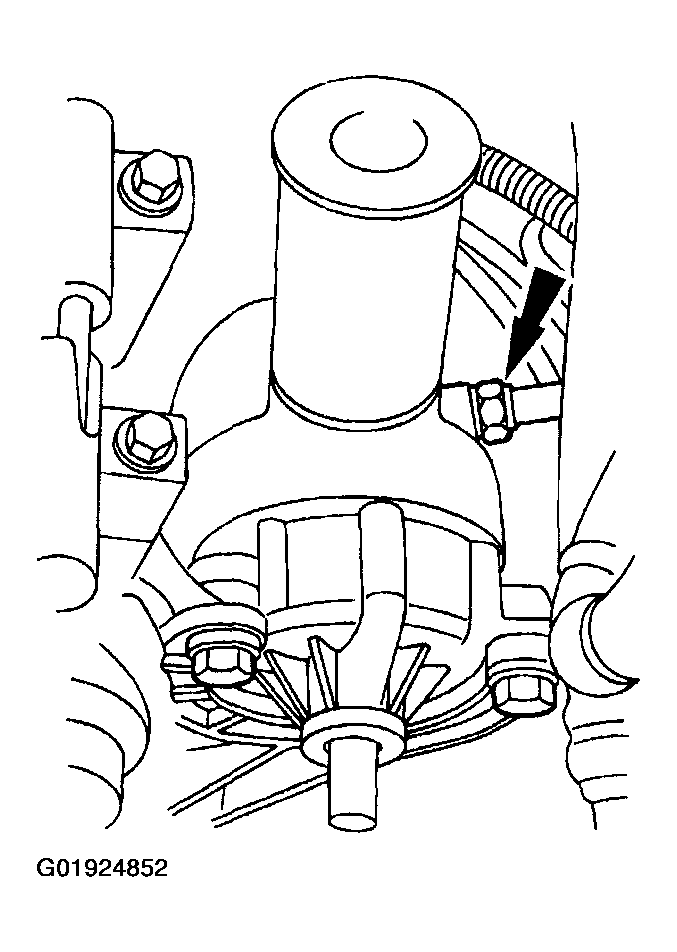

Fig 1: Disconnecting Power Steering Pressure Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering return hose.

Fig 2: Disconnecting Power Steering Return Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering return line hose.
Remove the bolts and the power steering pump.

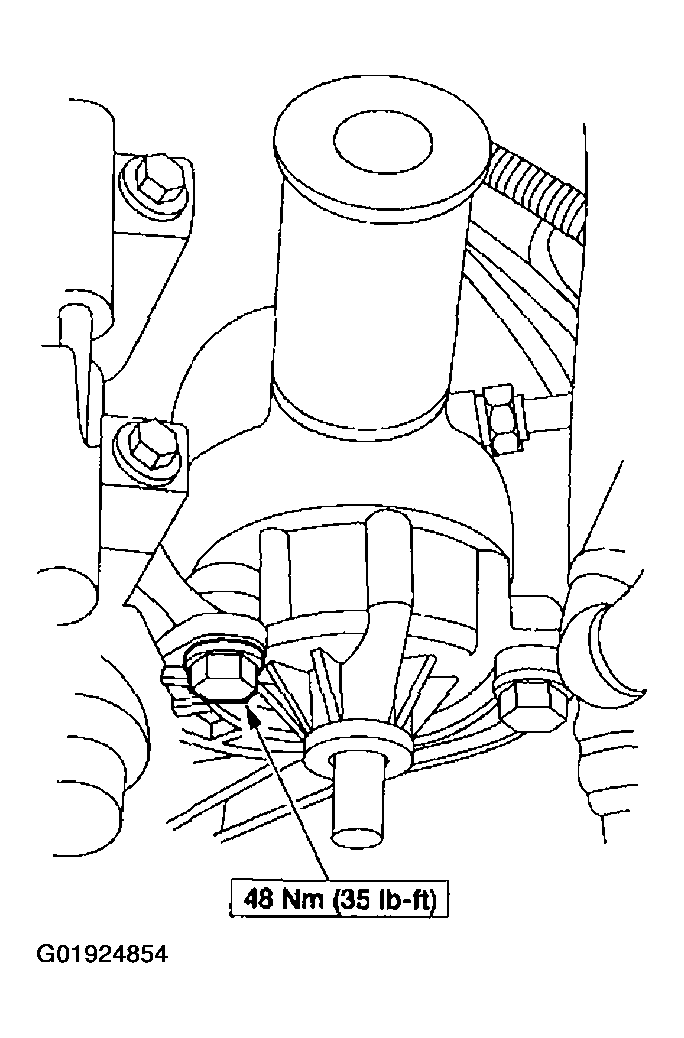

Fig 3: Disconnecting Power Steering Return Line Hose
Courtesy of MAZDA MOTORS CORP.
