Automatic Transmission External Controls Pinpoint Test 3: The Transmission Control Switch Is Not Operating Properly

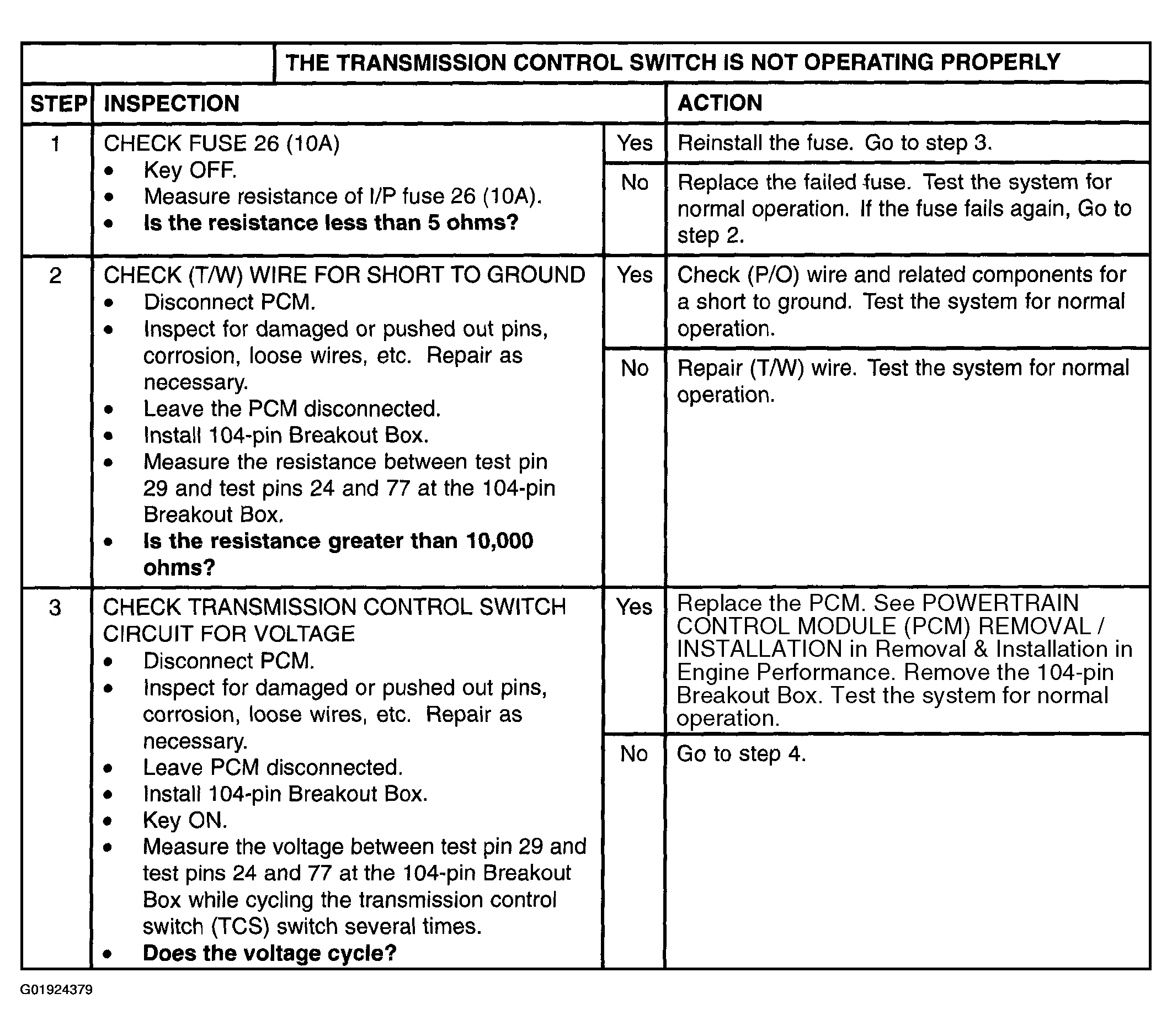

Fig 1: Automatic Transmission External Controls Pinpoint Test 3: Transmission Control Switch Is Not Operating Properly (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

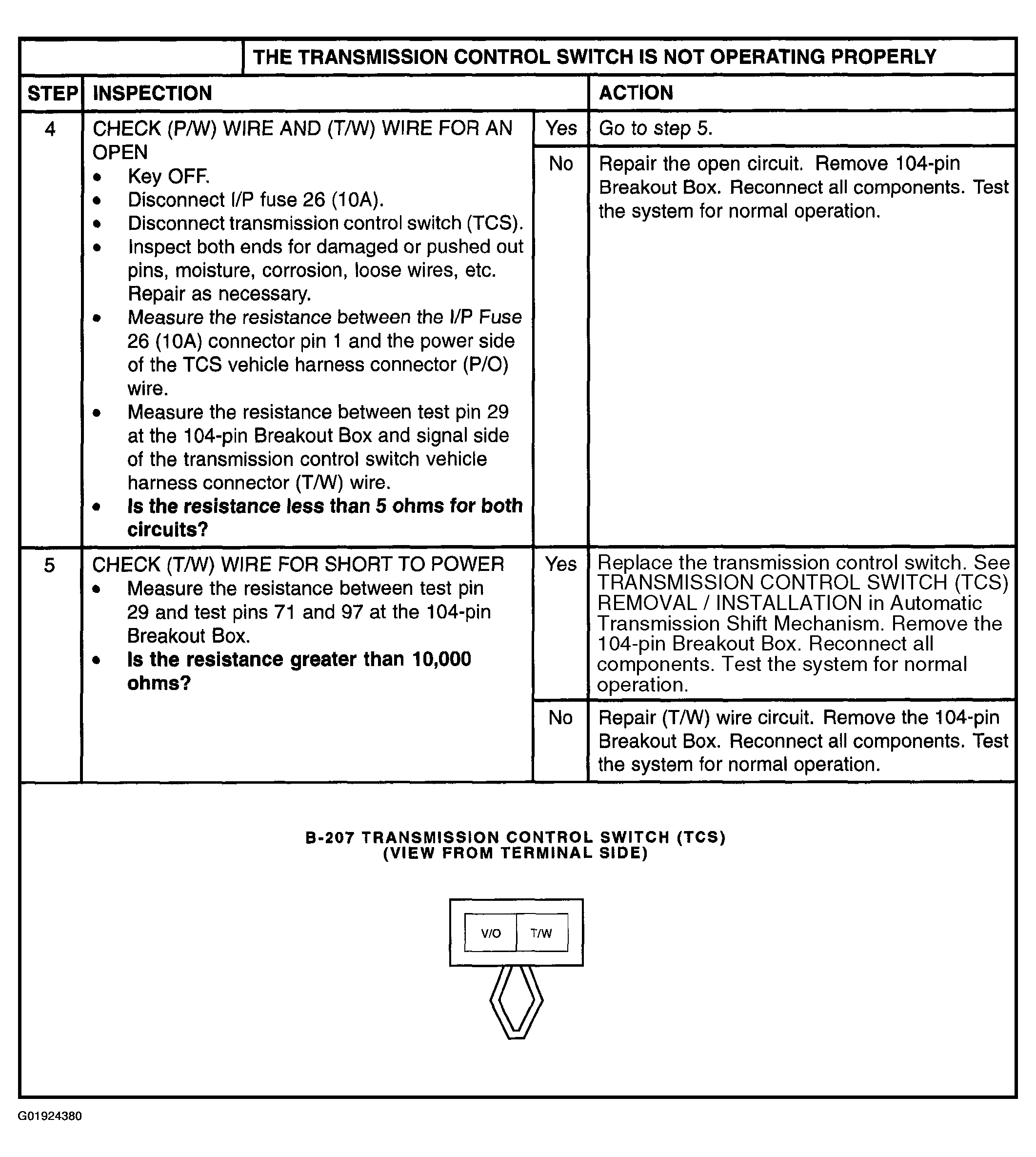

Fig 2: Automatic Transmission External Controls Pinpoint Test 3: Transmission Control Switch Is Not Operating Properly (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
