External Sealing: Notes

The transmission has the following parts to prevent external fluid leakage:

• gaskets
• lip-type seals
• O-ring seals
• seal rings
• seal grommets
• thread sealant

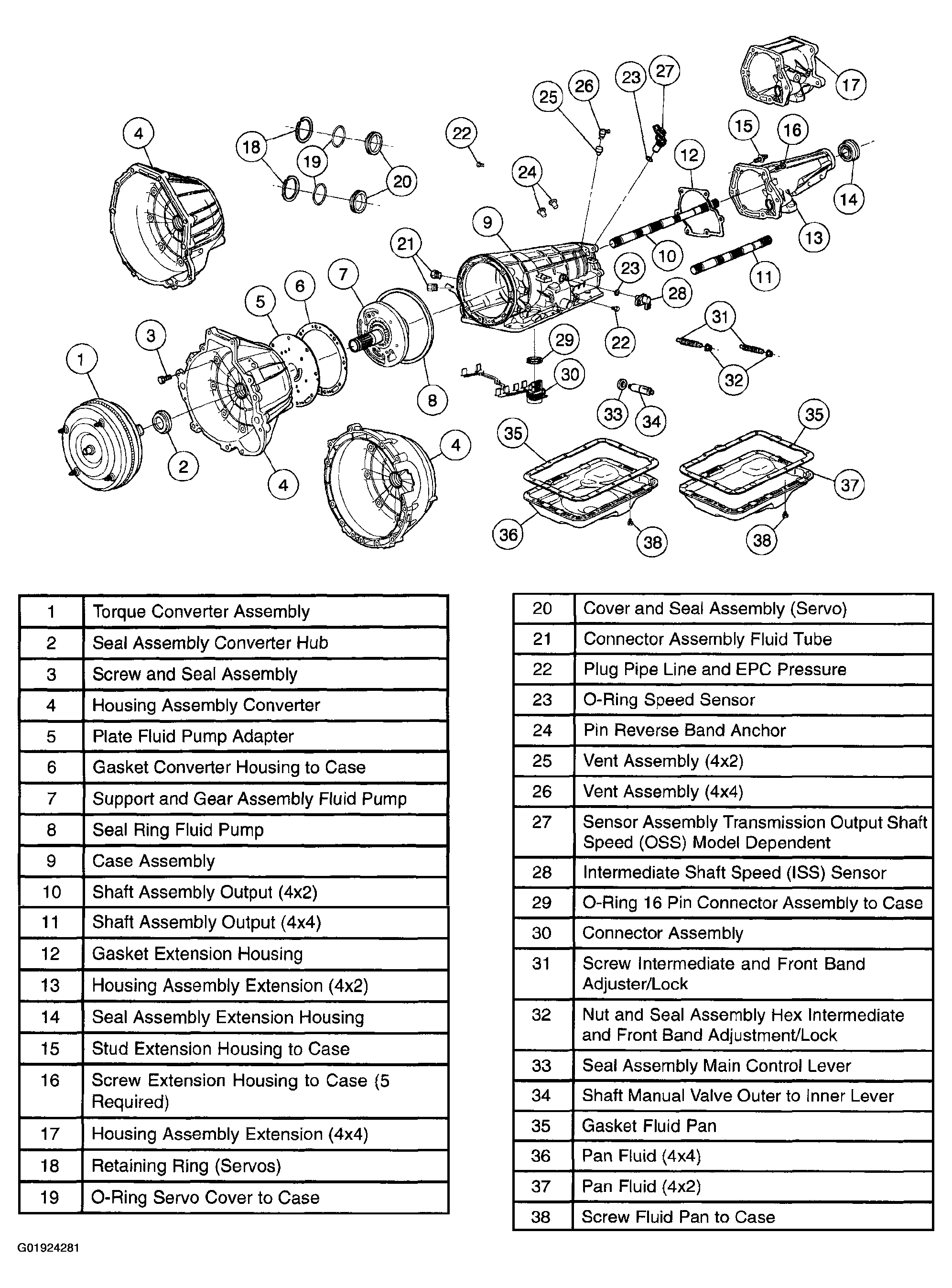

Fig 1: Exploded View Of Transmission External Sealing

Courtesy of MAZDA MOTORS CORP.
