Symptom Troubleshooting Chart - Automatic Transmission External Controls
Symptom Troubleshooting Chart - Automatic Transmission External Controls

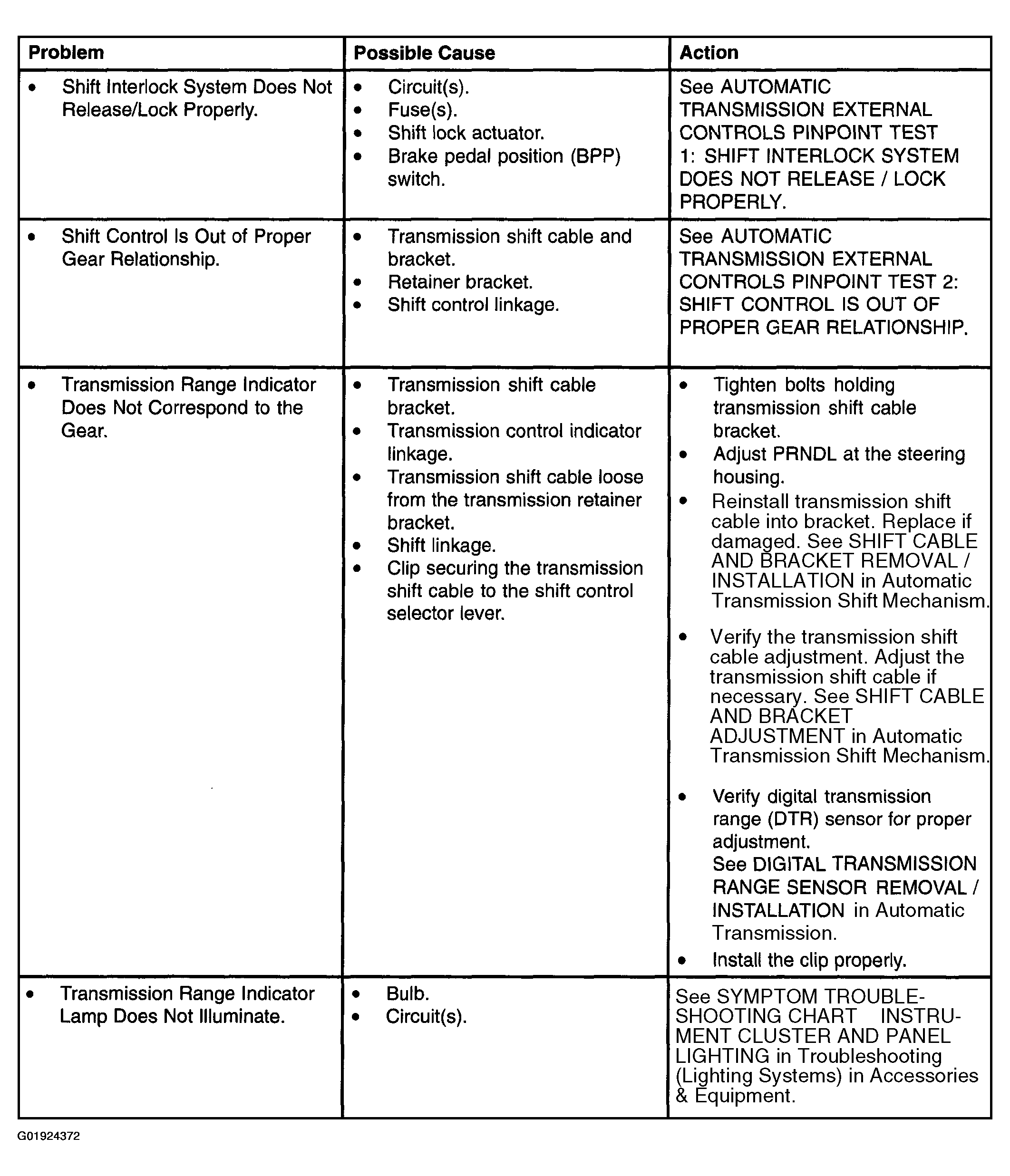

Fig 1: Symptom Troubleshooting Chart -- Automatic Transmission External Controls (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
