Technical Data (Steering)
›
Steering Specifications
Steering Specifications

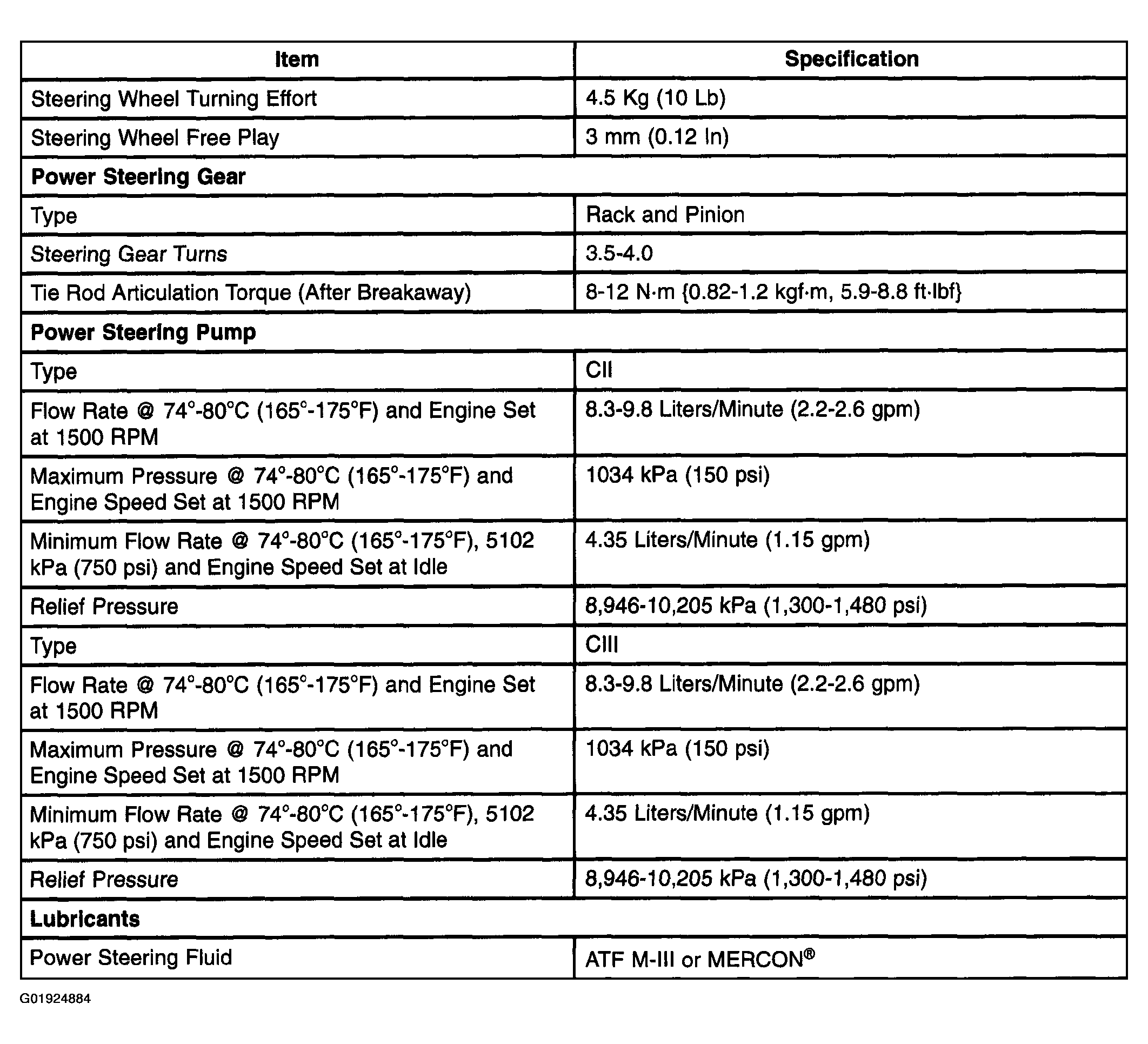

Fig 1: Steering Specifications Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
