The Key-In-Ignition Chime Does Not Operate Correctly

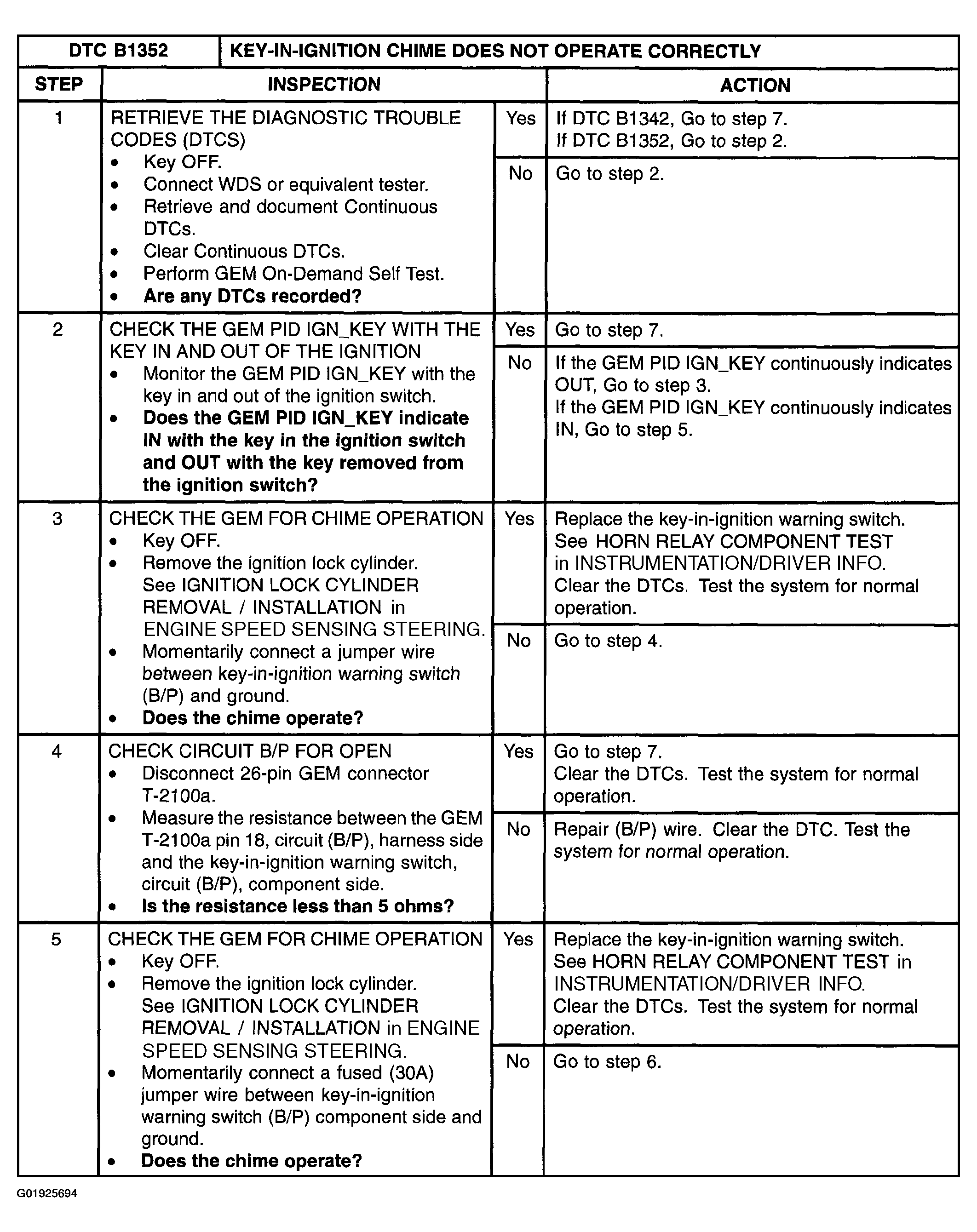

Fig 1: Diagnosis Procedure -- The Key-In-Ignition Chime Does Not Operate Correctly (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

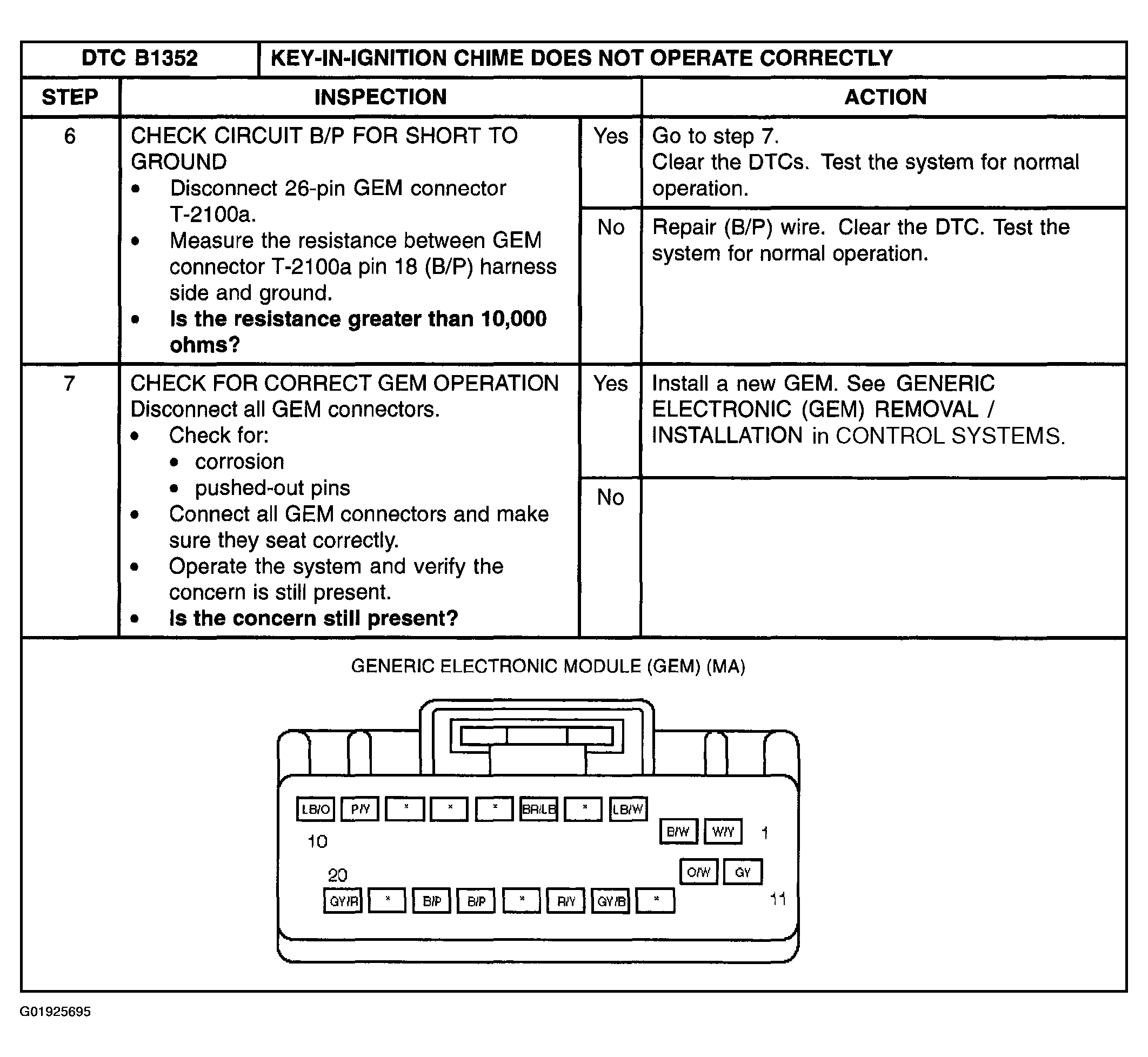

Fig 2: Diagnosis Procedure -- The Key-In-Ignition Chime Does Not Operate Correctly (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.
