Powertrain Control Module (PCM) Connector End View (C175) (3 Of 3)

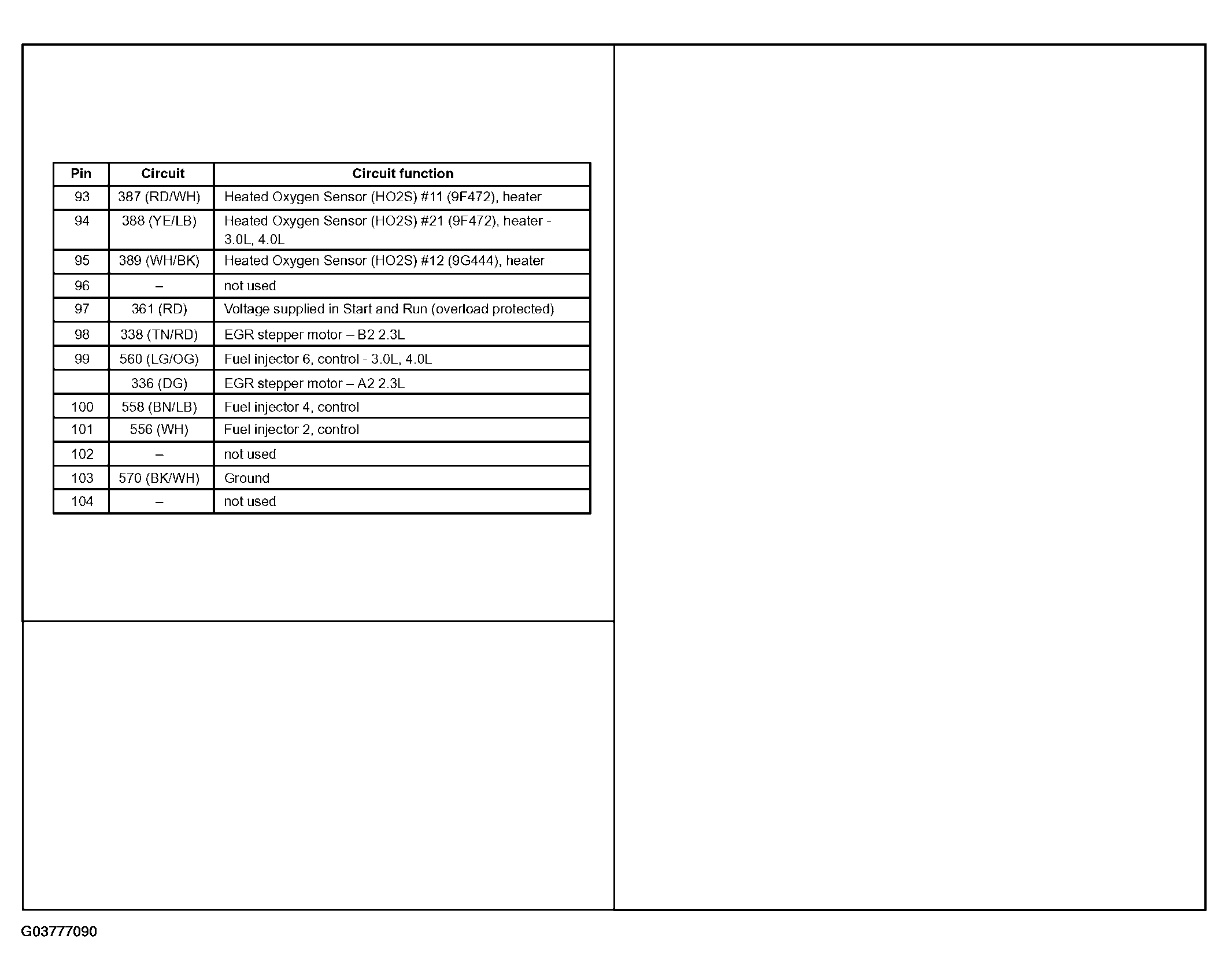

Fig 1: Powertrain Control Module (PCM) Connector End View (C175) (3 Of 3)
G03777090Courtesy of FORD MOTOR CO.
