Module Does Not Respond To The WDS Tester - Central Security Module

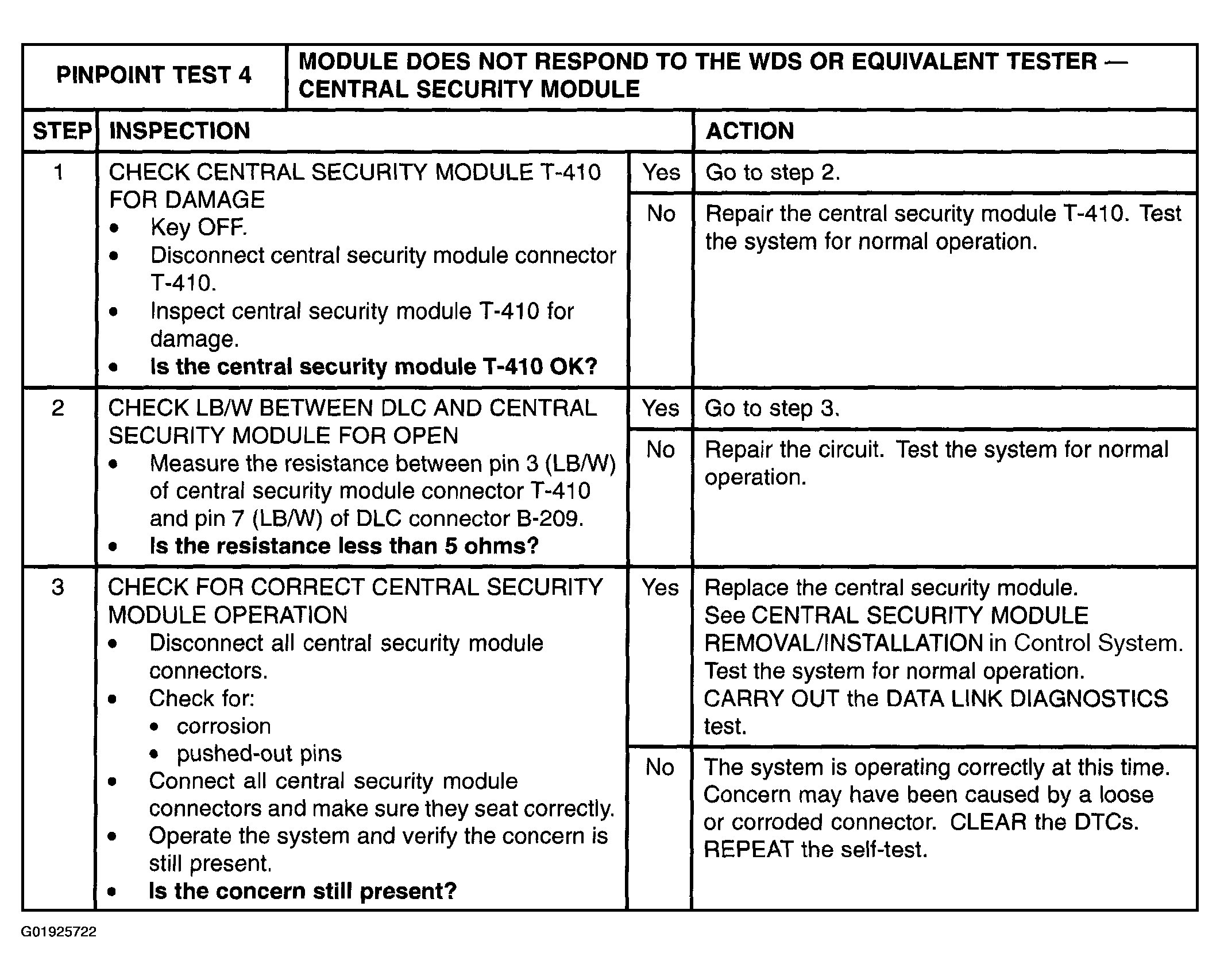

Fig 1: Diagnosis Procedure -- Central Security Module (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

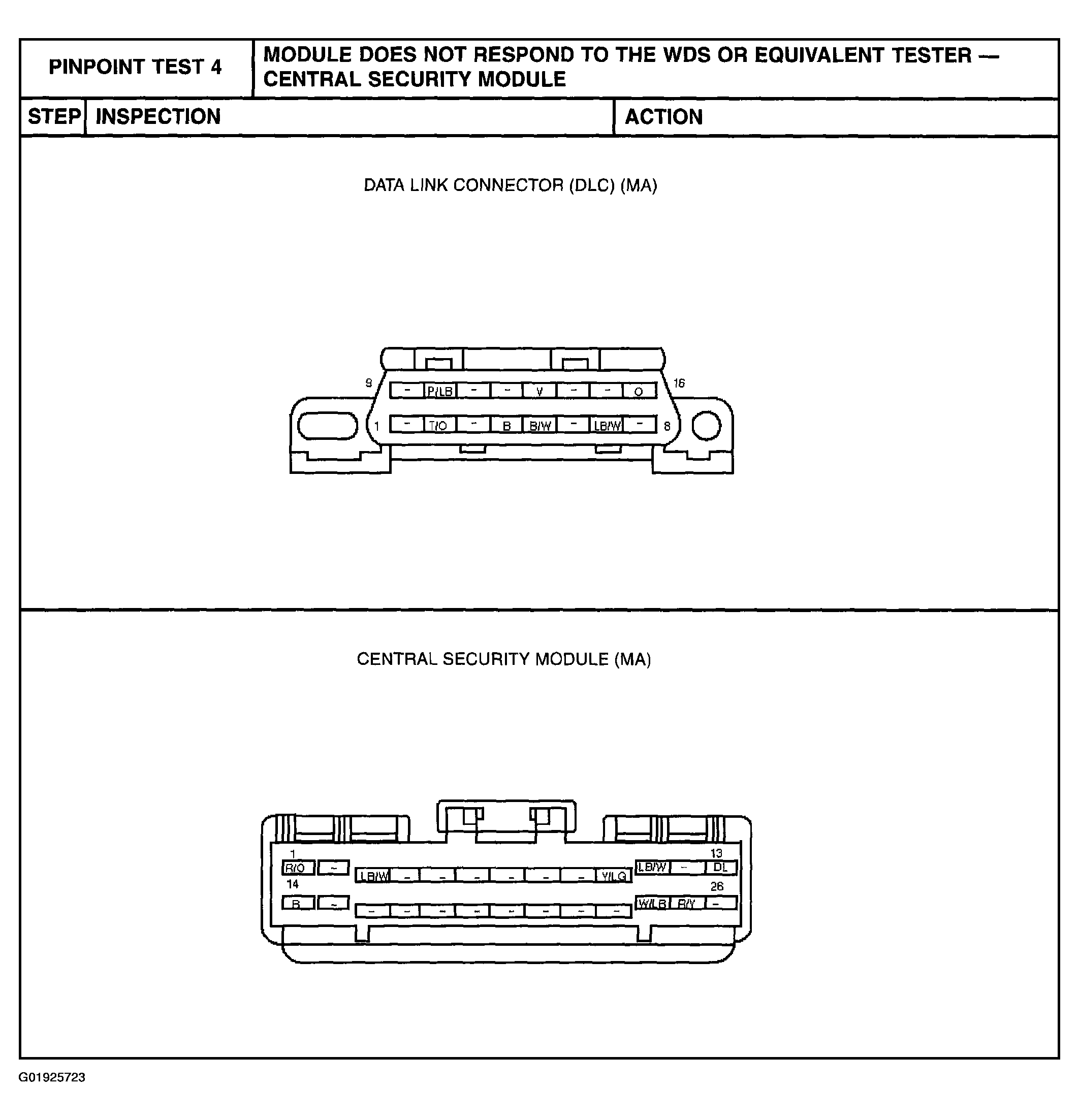

Fig 2: Data Link Connector & Central Security Module Connector Identification

Courtesy of MAZDA MOTORS CORP.
