Audio Unit Removal/Inspection

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Using the special tool, remove the audio unit.

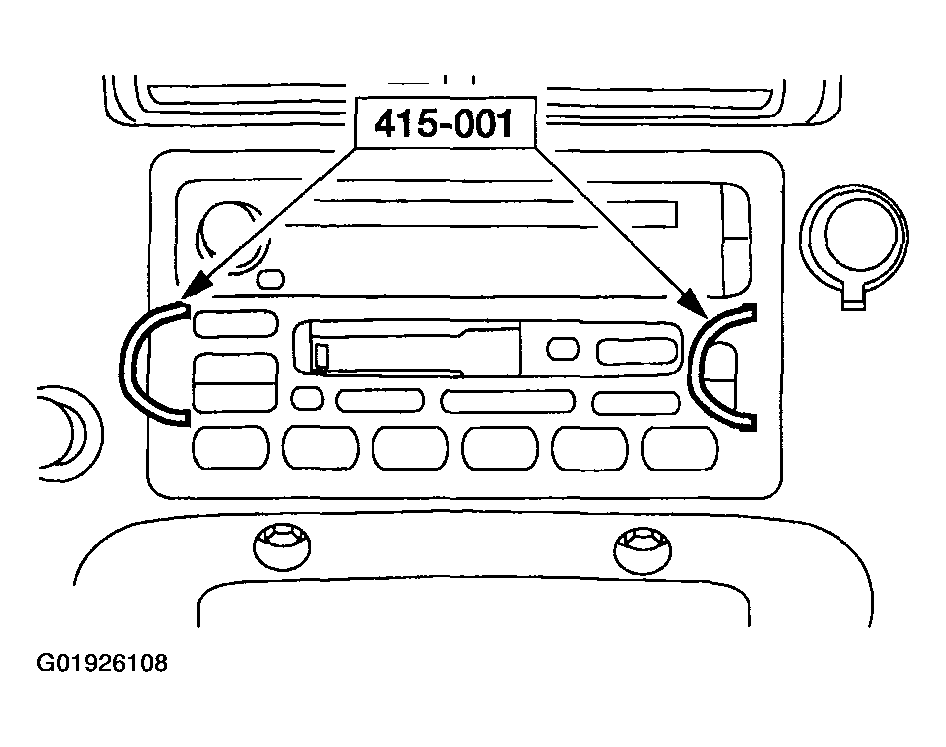

Fig 1: Removing Audio Unit
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

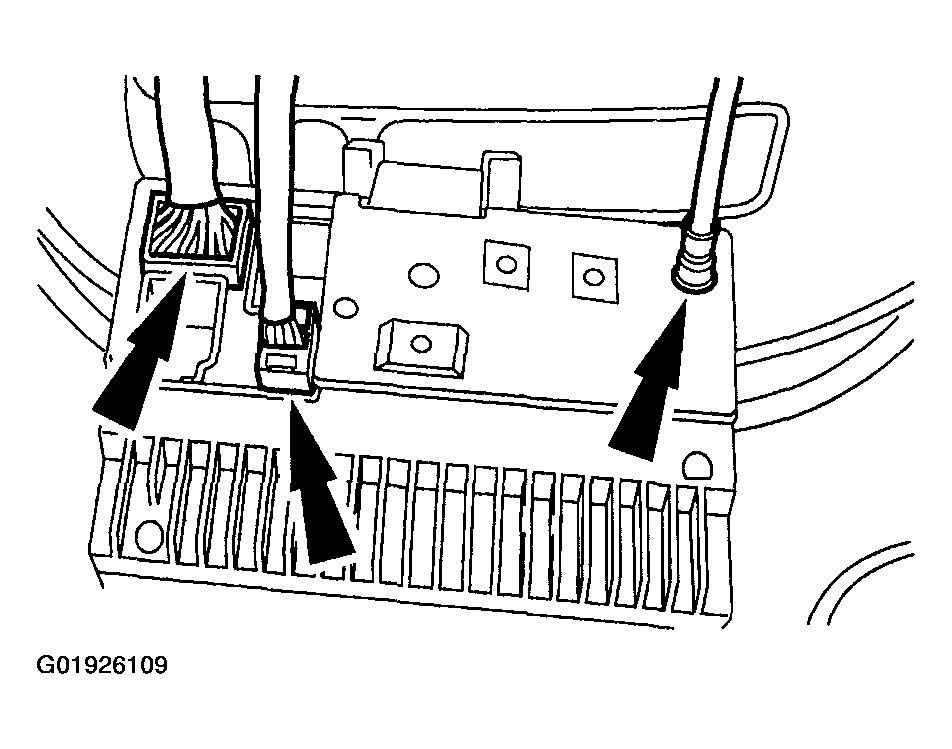

Fig 2: Disconnecting Connectors
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
