Central Security Module Connector End View (C274a)

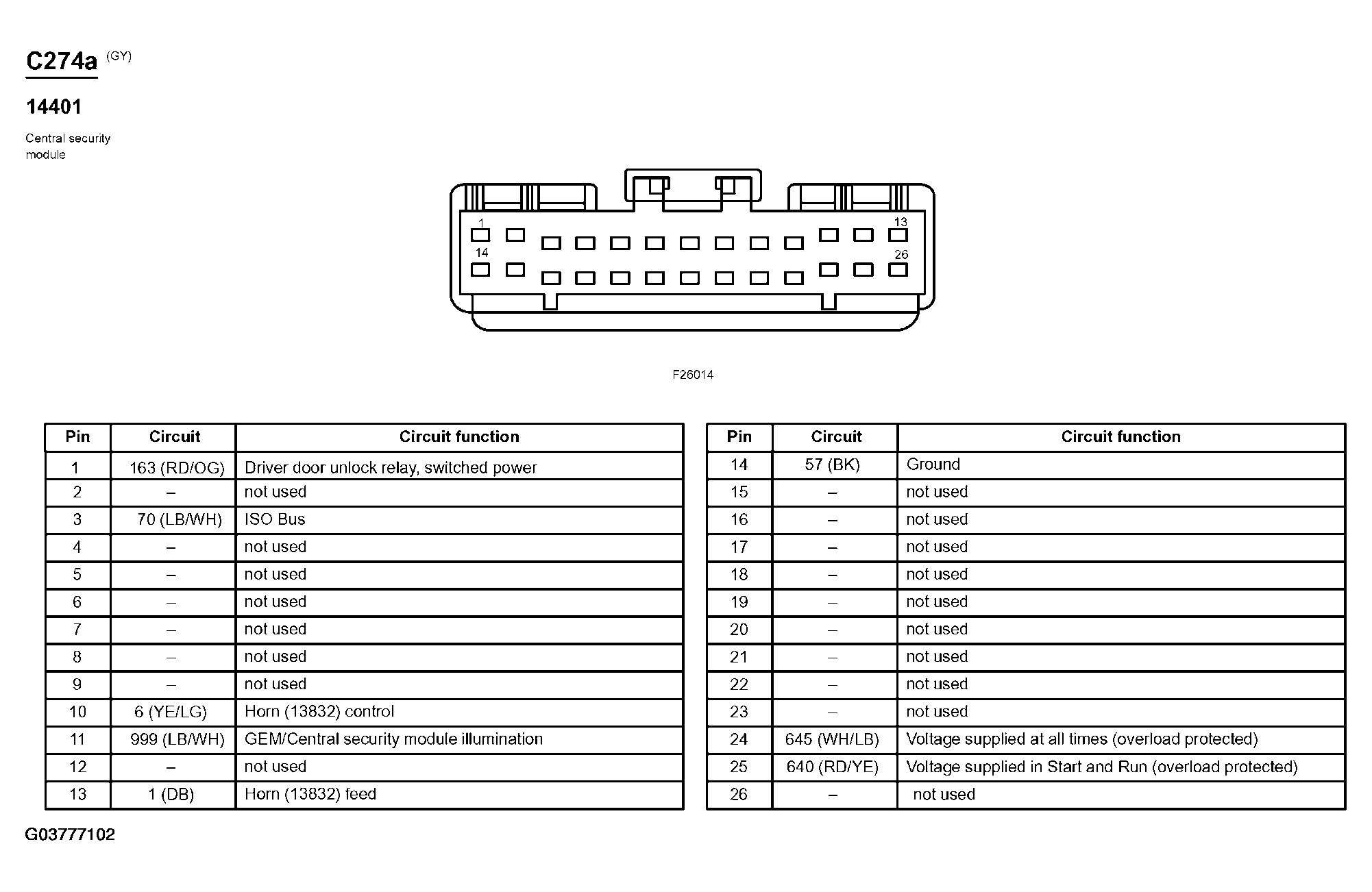

Fig 1: Central Security Module Connector End View (C274a)
G03777102Courtesy of FORD MOTOR CO.
