Central Security Module Connector End View (C274b)

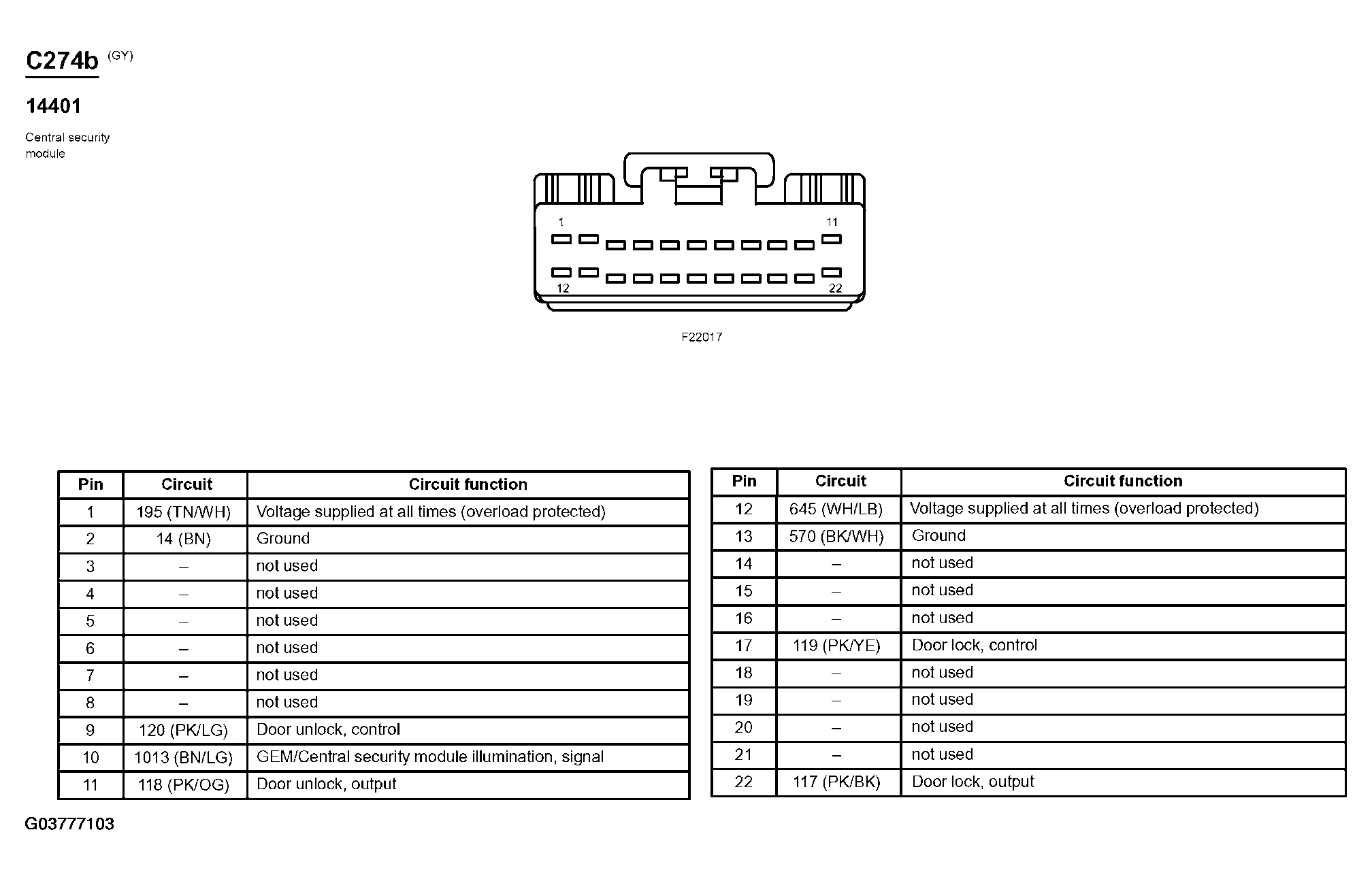

Fig 1: Central Security Module Connector End View (C274b)
G03777103Courtesy of FORD MOTOR CO.
