Shift Control Switch Removal/Installation

Remove the Mode Select Switch (MSS) knob.

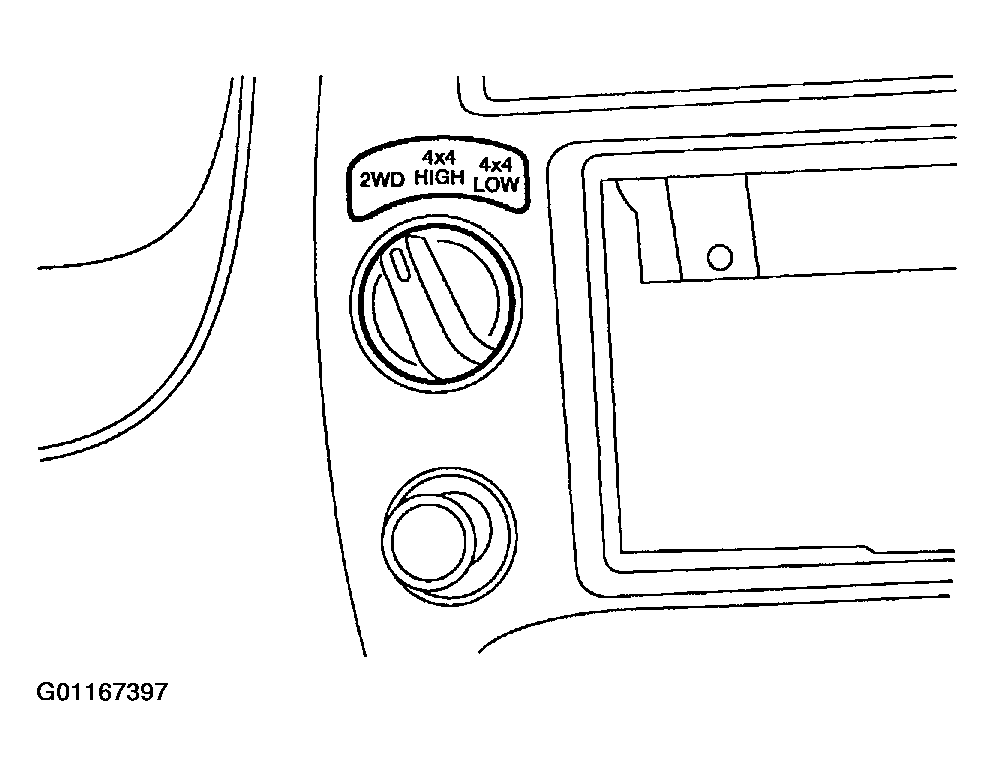

Fig 1: Removing Mode Select Switch Knob
Courtesy of MAZDA MOTORS CORP.
Remove the audio unit.
Remove the screws and pull out the instrument panel center finish panel out of the instrument panel.

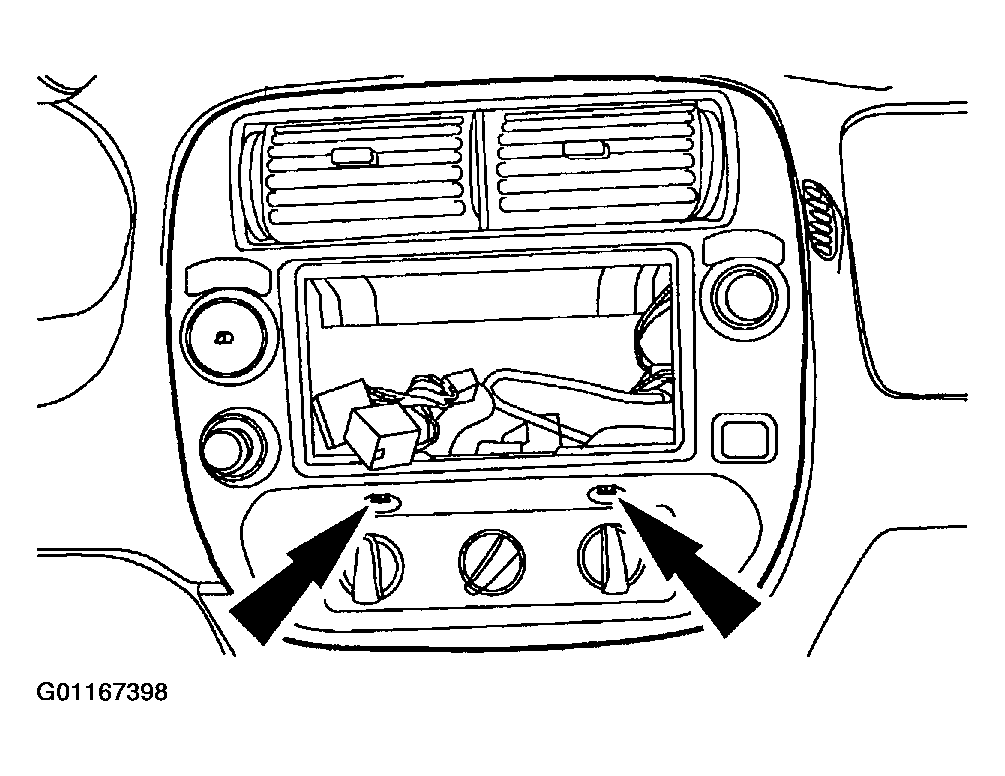

Fig 2: Removing Instrument Panel Center Finish Panel Screws
Courtesy of MAZDA MOTORS CORP.
Remove the two screws retaining the switch, and remove the switch.

Fig 3: Removing Mode Select Switch
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
