Torque Specifications
Torque Specifications
TORQUE SPECIFICATIONS
Application
Specification - Ft. Lbs. (N.m)
Damper Bolt
25-35 (34-48)
Fill Plug
18 (24)
Skid Plate Bolt
18 (24)
Transfer Case Bolt
(1)
35-46 (47-63)
(1)

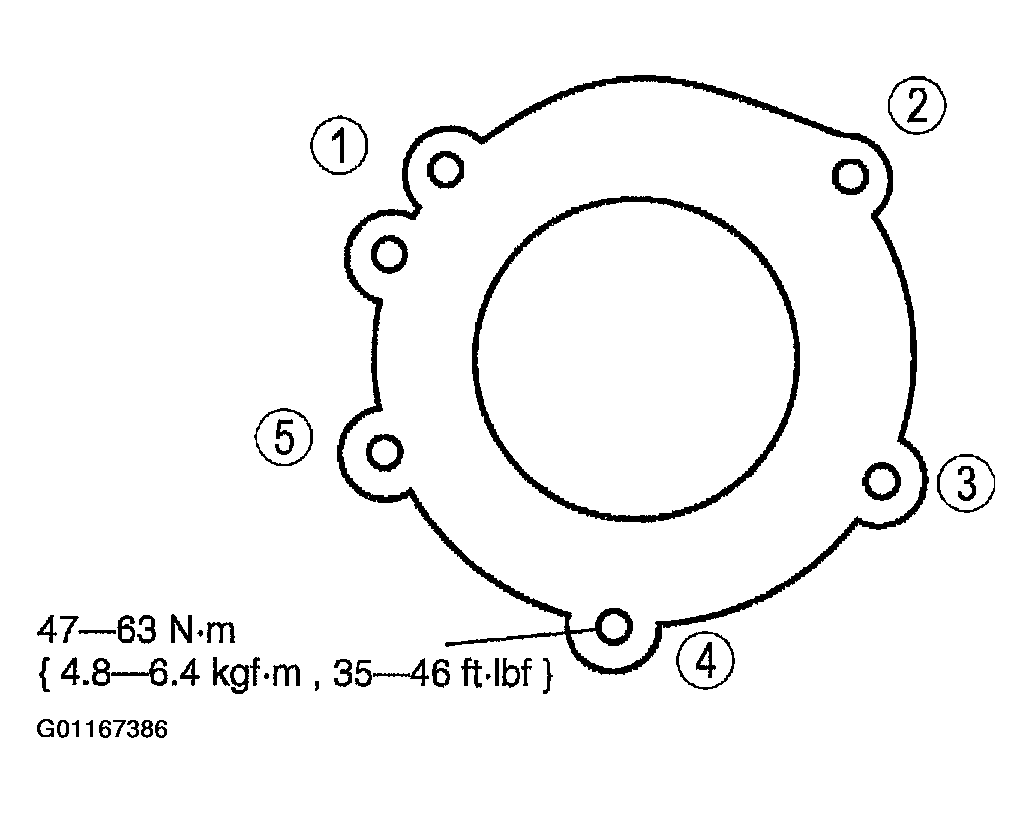

Tighten bolts in sequence. See
Figure
.
