Lower Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the audio unit. (See AUDIO UNIT REMOVAL/INSTALLATION  .)
  3. Remove in the order indicated in the figures.

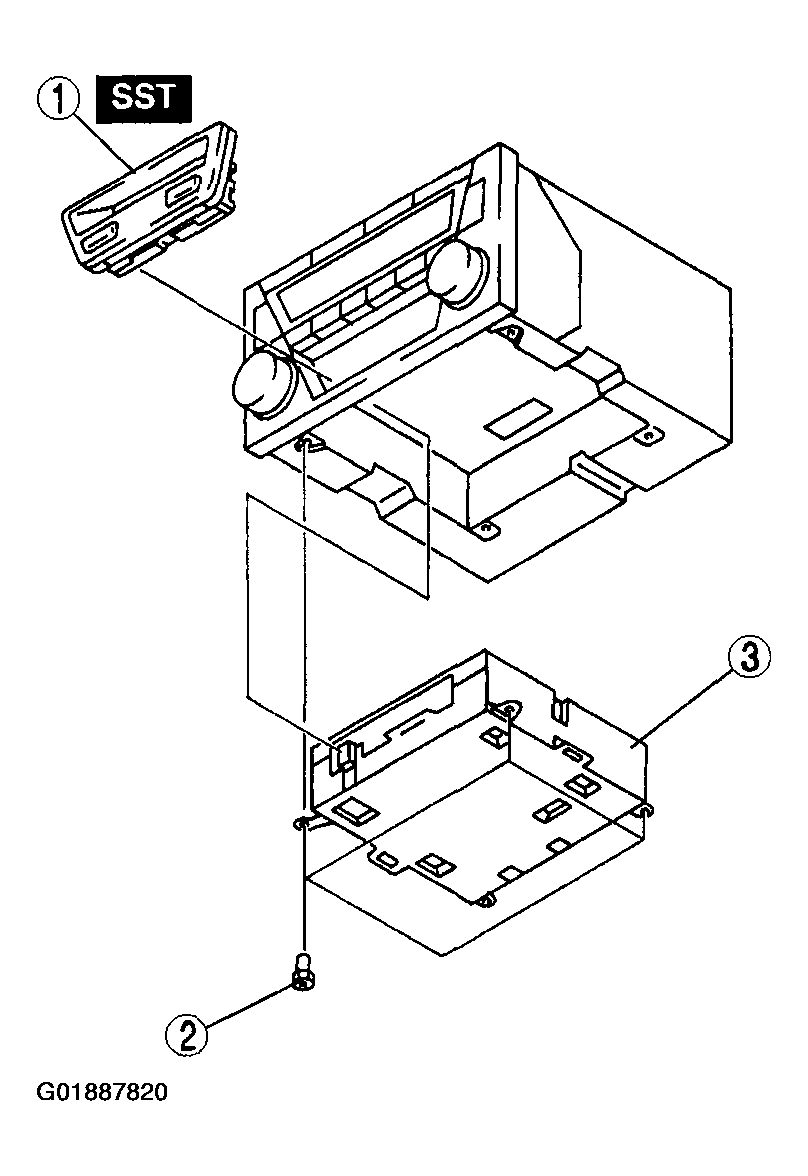

    Fig 1: Removing Lower Module
    G01887820Courtesy of MAZDA MOTORS CORP.
    Fig 2: Lower Module Removal Sequence
    G01887819Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
