Panel Light Control Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the driver-side side panel.
  3. Remove in the order indicated in the figure below.
  4. Install in the reverse order of removal.
    Fig 1: Panel Light Control Switch Removal Order Table
    G01887717Courtesy of MAZDA MOTORS CORP.

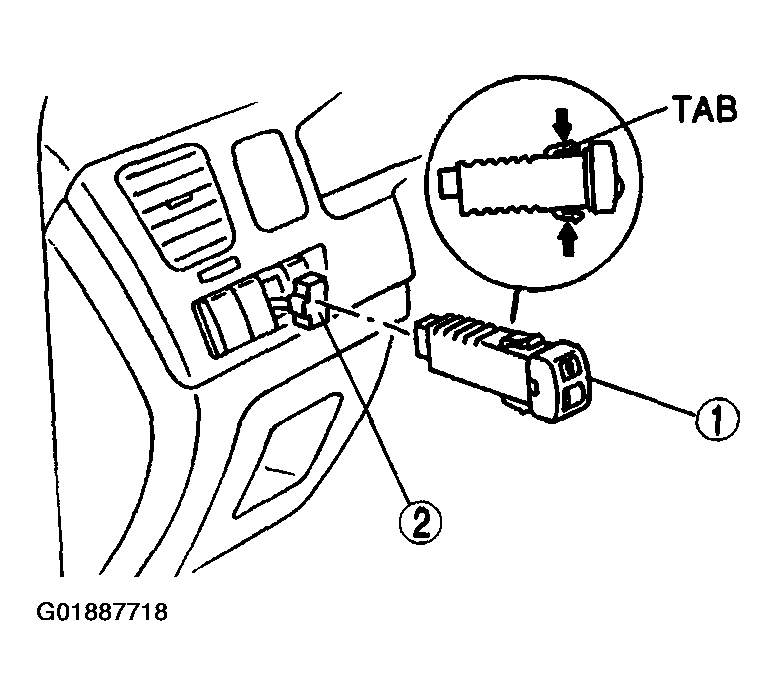

    Fig 2: Removal Order Of Panel Light Control Switch
    G01887718Courtesy of MAZDA MOTORS CORP.
