Cruise Actuator Removal/Installation: Notes

Disconnect the negative battery cable.
Remove the engine cover.
Remove in the order indicated in the illustration.

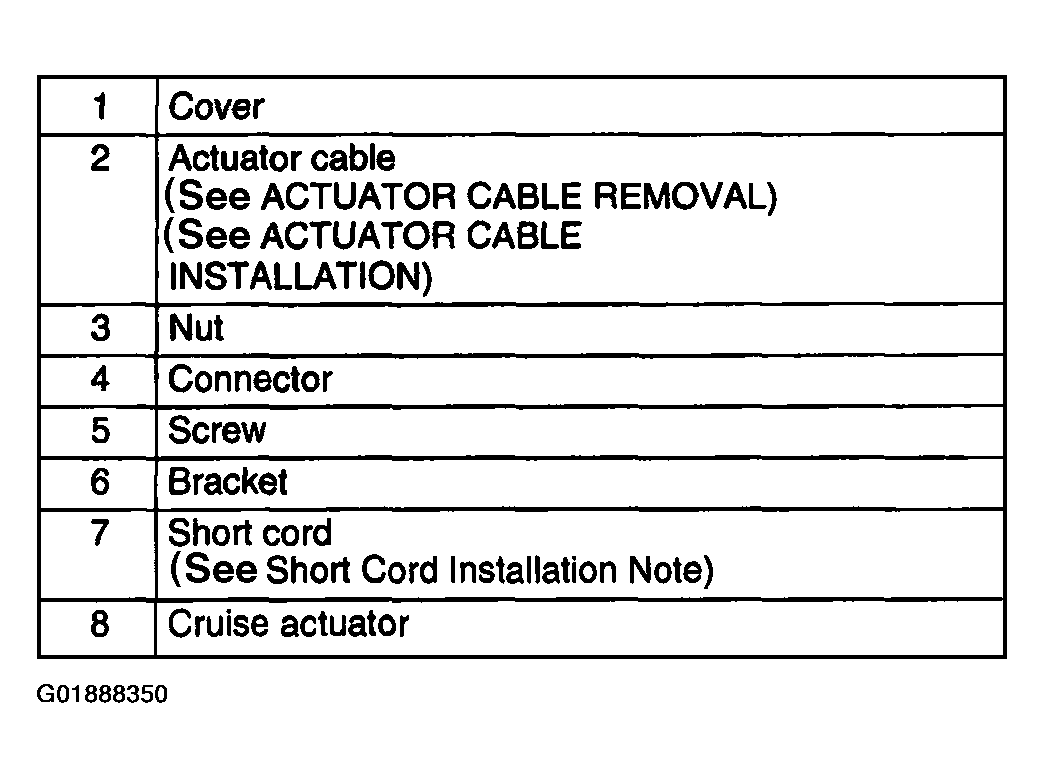

Fig 1: Cruise Actuator Specification Chart
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

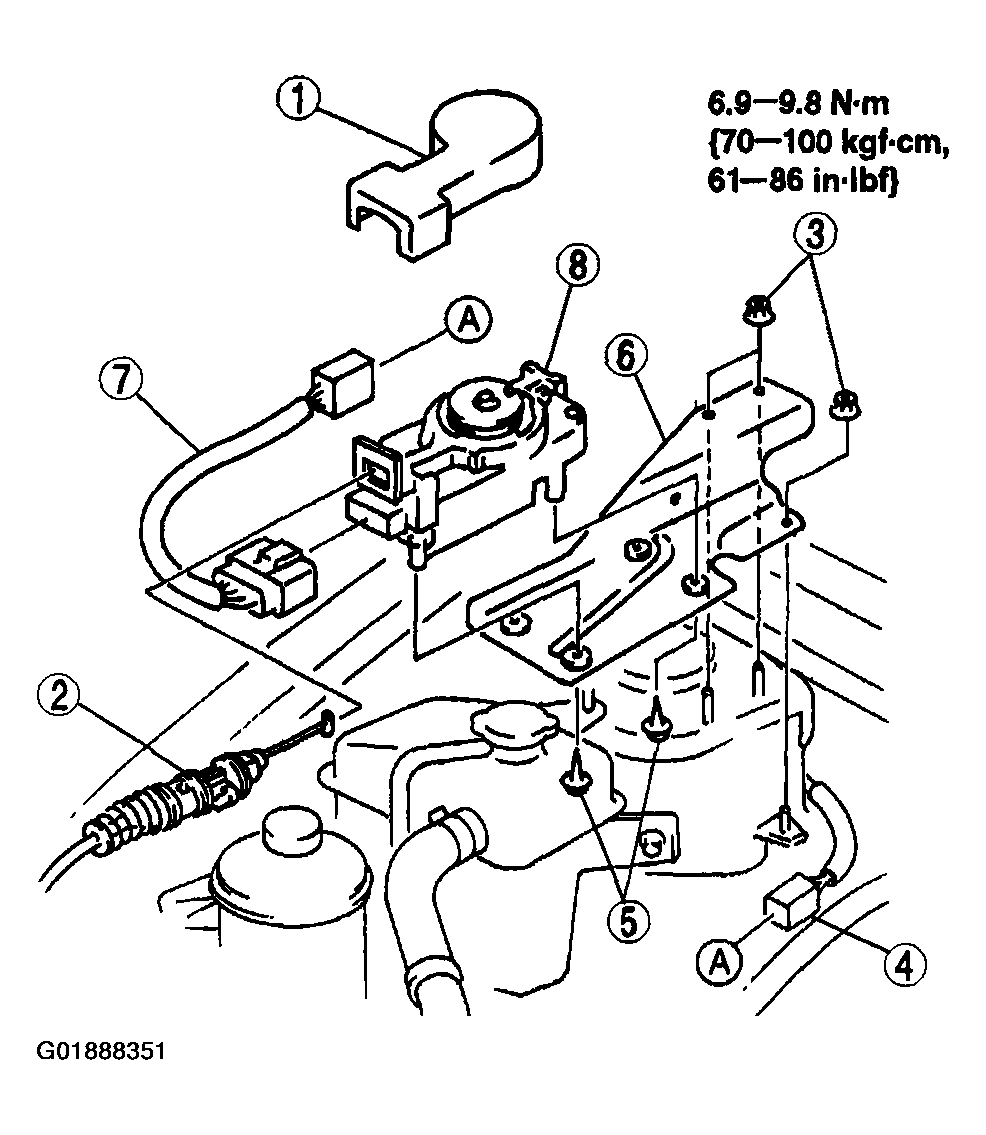

Fig 2: Exploded View Of Cruise Actuator
Courtesy of MAZDA MOTORS CORP.
