Entertainment Location Index

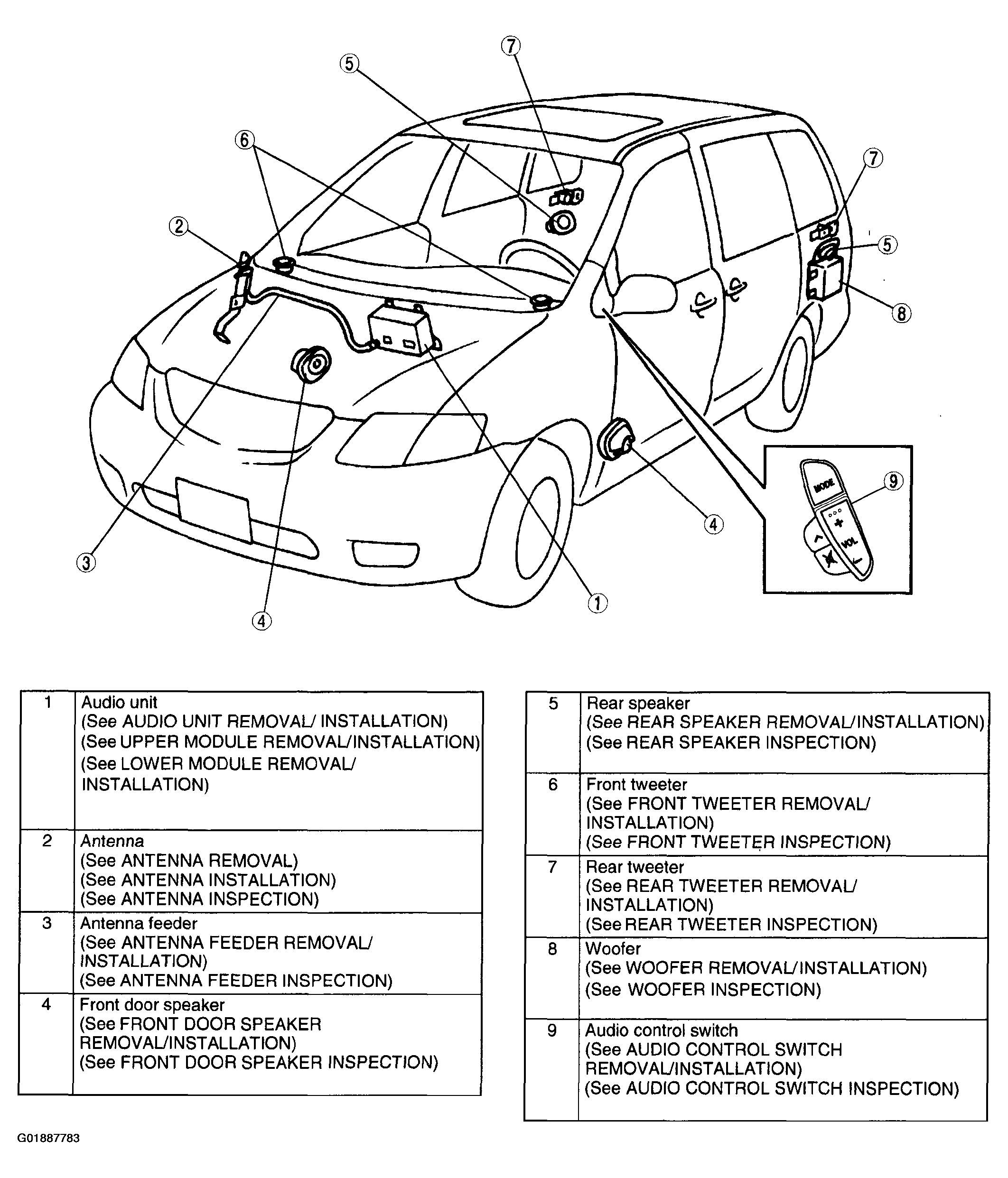

Fig 1: Entertainment System Components Location Index
G01887783Courtesy of MAZDA MOTORS CORP.
