Combination Switch Disassembly/Assembly

  1. Disassemble in the order indicated in the figure below.
  2. Assemble in the reverse order of disassembly.
    Fig 1: Combination Switch Disassemble Order Table
    G01887660Courtesy of MAZDA MOTORS CORP.

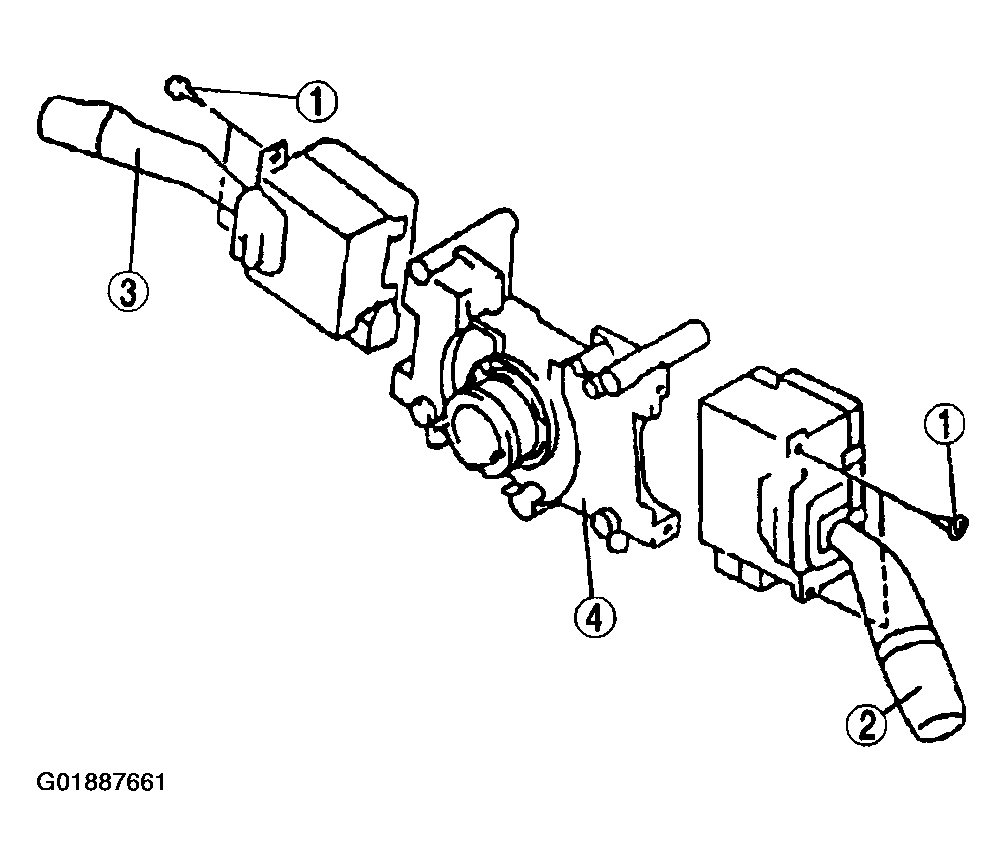

    Fig 2: Disassemble Order Of Combination Switch
    G01887661Courtesy of MAZDA MOTORS CORP.
