Front Combination Light Removal Note

CAUTION:

To prevent the front combination light and bumper from being scratched, attach protective tape to the metal ruler and the bumper.

Insert a 15 mm {0.59 in} maximum width metal ruler into the end of the front combination light approximately 75-80 mm {3.0-3.1 in}. Rotate the metal ruler towards the front of the vehicle and remove the front combination light.

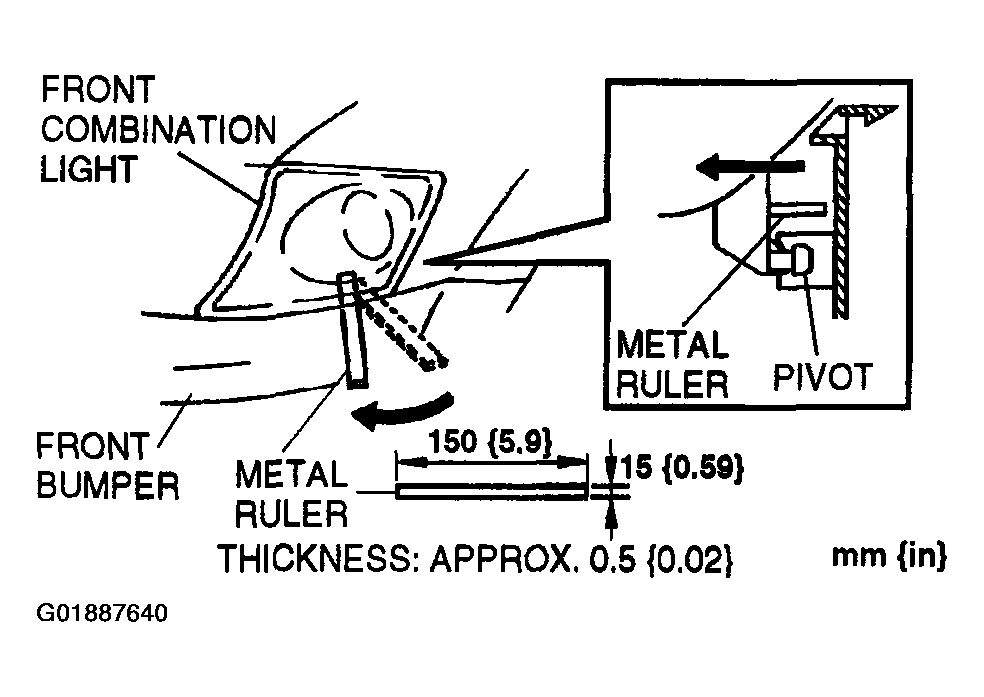

Fig 1: Removing Front Combination Light
Courtesy of MAZDA MOTORS CORP.
