Headlight Bulb Removal/Installation: Notes

CAUTION:
  • A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure below.
    Fig 1: Headlight Bulb Removal Order Table
    G01887632Courtesy of MAZDA MOTORS CORP.

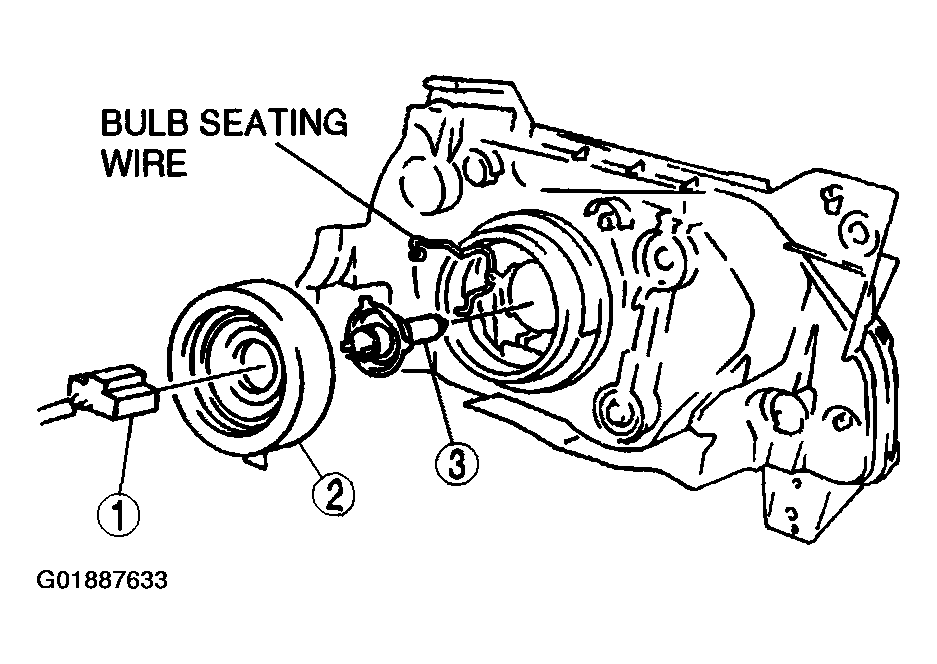

    Fig 2: Removal Order Of Headlight Bulb
    G01887633Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
