Headlight switch

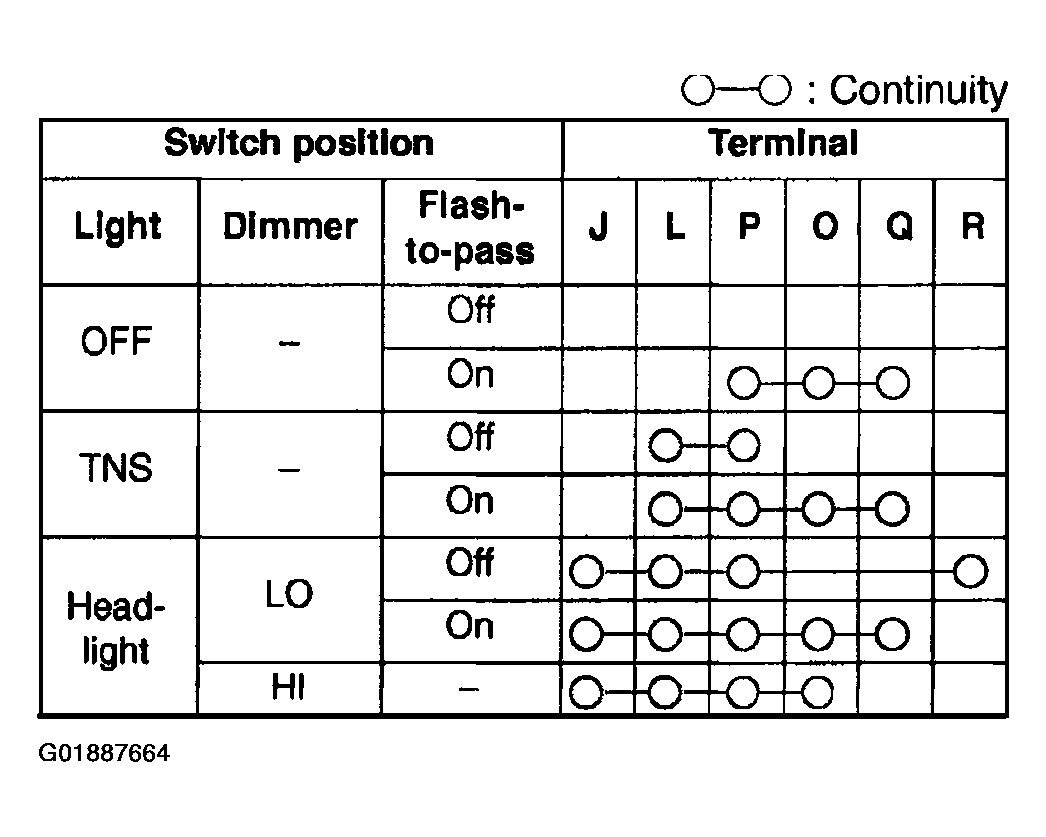

Fig 1: Inspecting Headlight Switch (1 Of 2)
G01887664Courtesy of MAZDA MOTORS CORP.

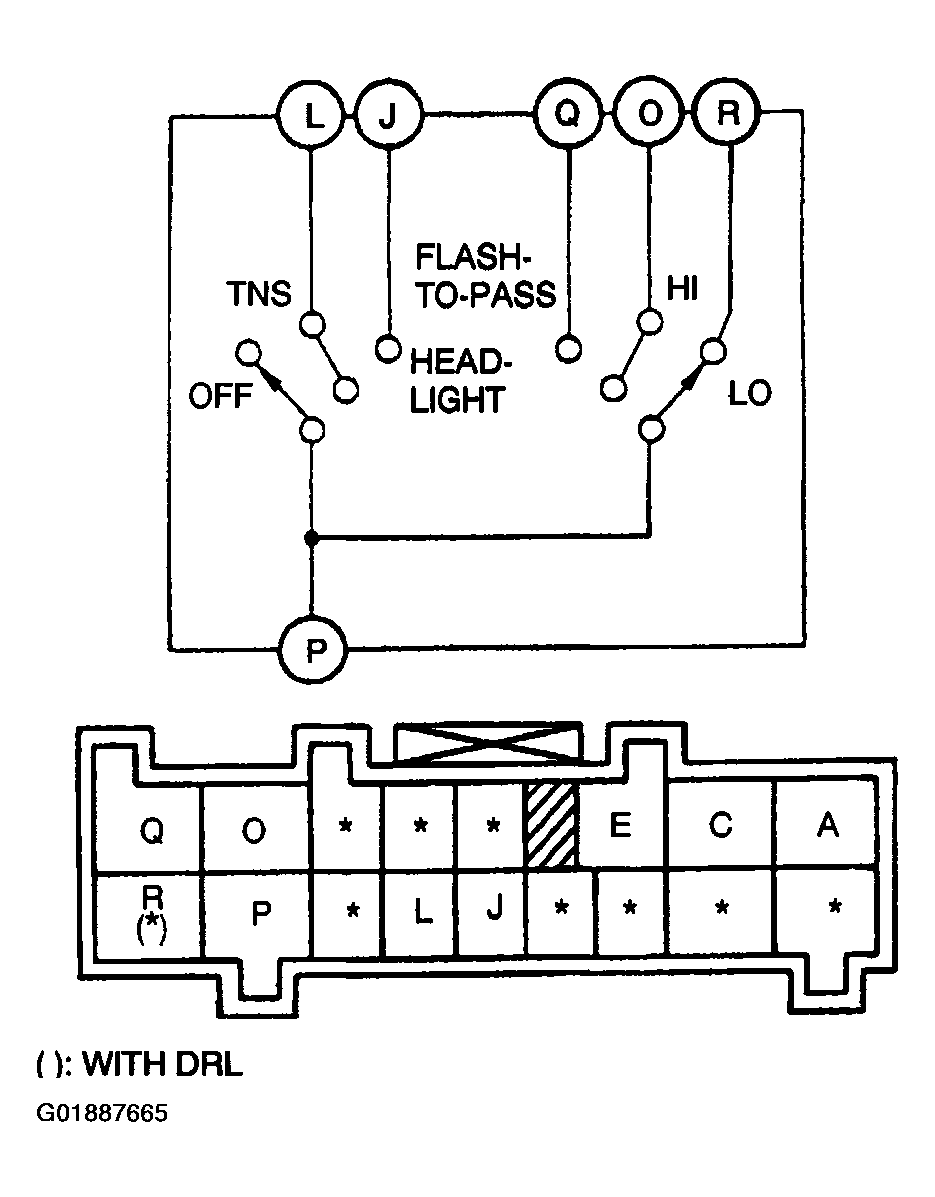

Fig 2: Inspecting Headlight Switch (2 Of 2)
G01887665Courtesy of MAZDA MOTORS CORP.
