Map Light Removal/Installation
›
Without Sliding Sunroof
›
Notes
Without Sliding Sunroof: Notes
Disconnect the negative battery cable.
Remove in the order indicated in the figure below.
Fig 1: Overhead Console Removal Order Table - With Overhead Storage Compartment
Courtesy of MAZDA MOTORS CORP.

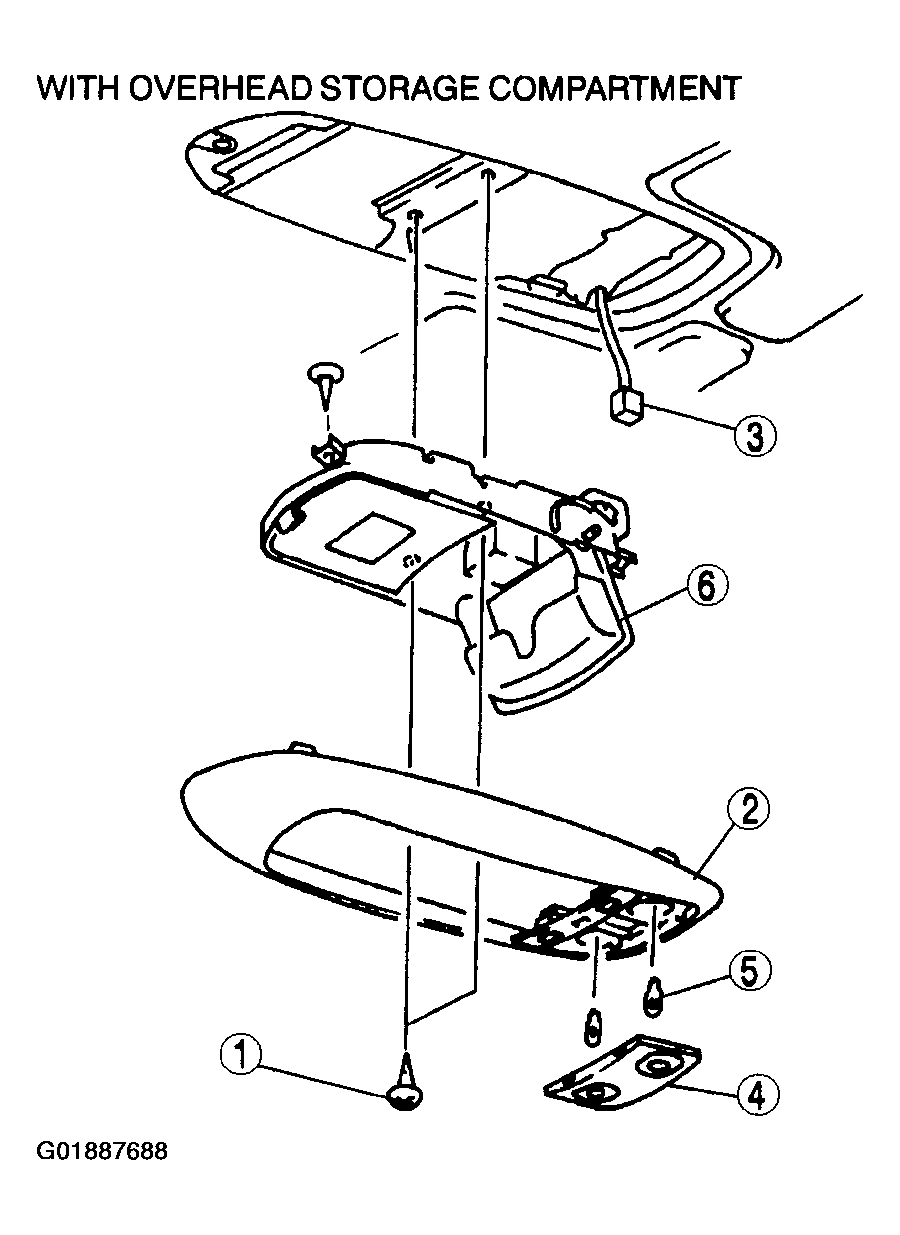

Fig 2: Removal Order Of Overhead Console - With Overhead Storage Compartment
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Fig 3: Overhead Console Removal Order Table - Without Overhead Storage Compartment
Courtesy of MAZDA MOTORS CORP.

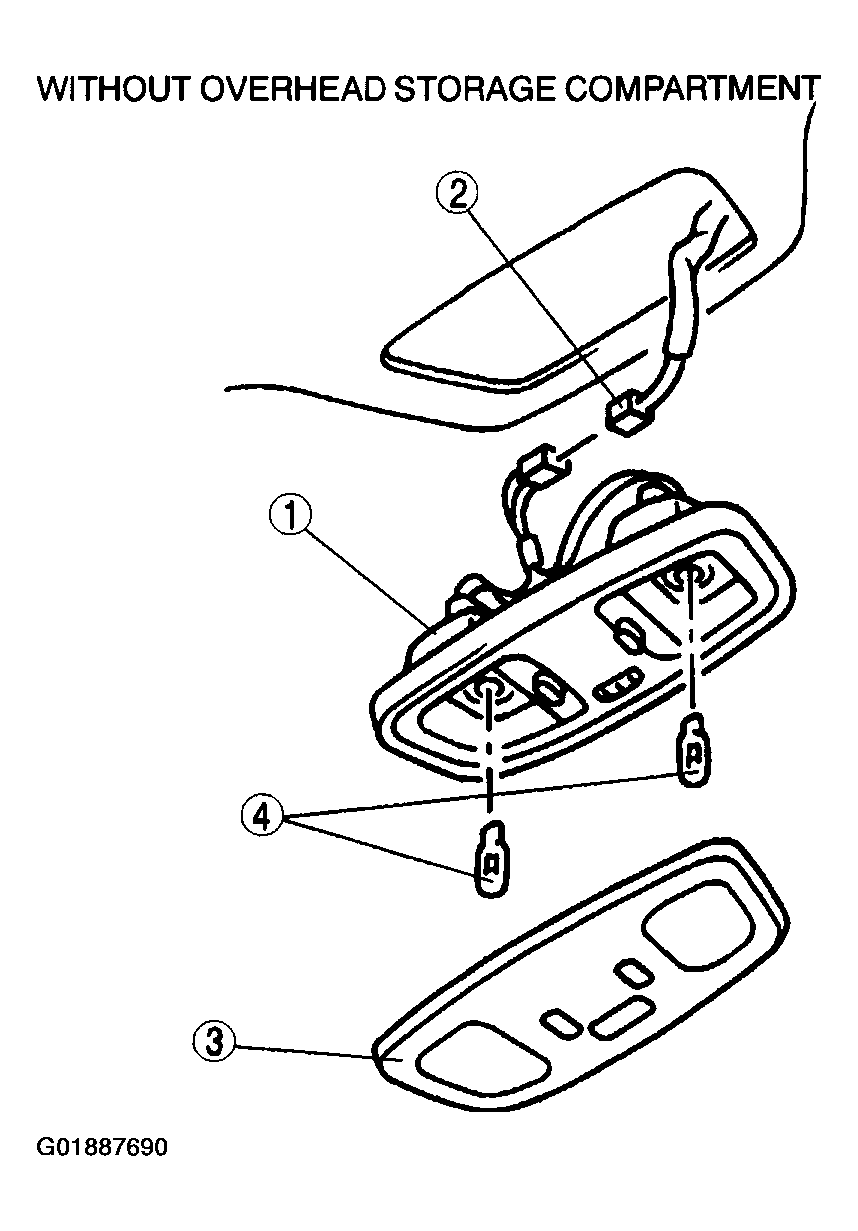

Fig 4: Removal Order Of Overhead Console - Without Overhead Storage Compartment
Courtesy of MAZDA MOTORS CORP.
