Rear Combination Light Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the rear side trim. (Right side only) (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure below.
  4. Install in the reverse order of removal.

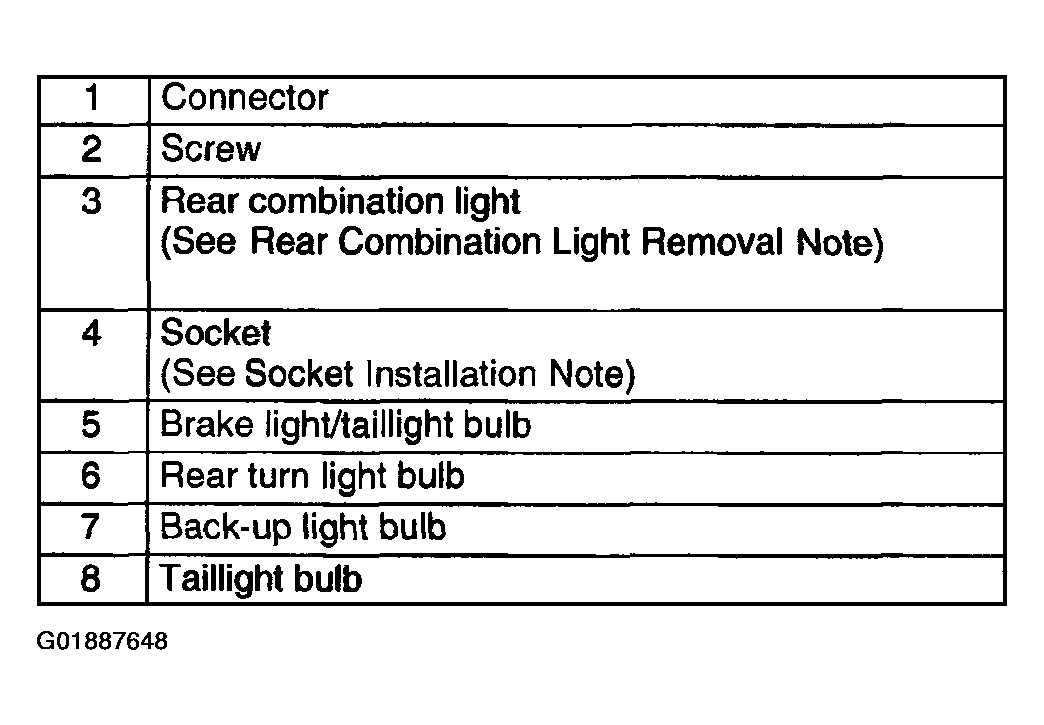

    Fig 1: Rear Combination Light Removal Order Table
    G01887648Courtesy of MAZDA MOTORS CORP.

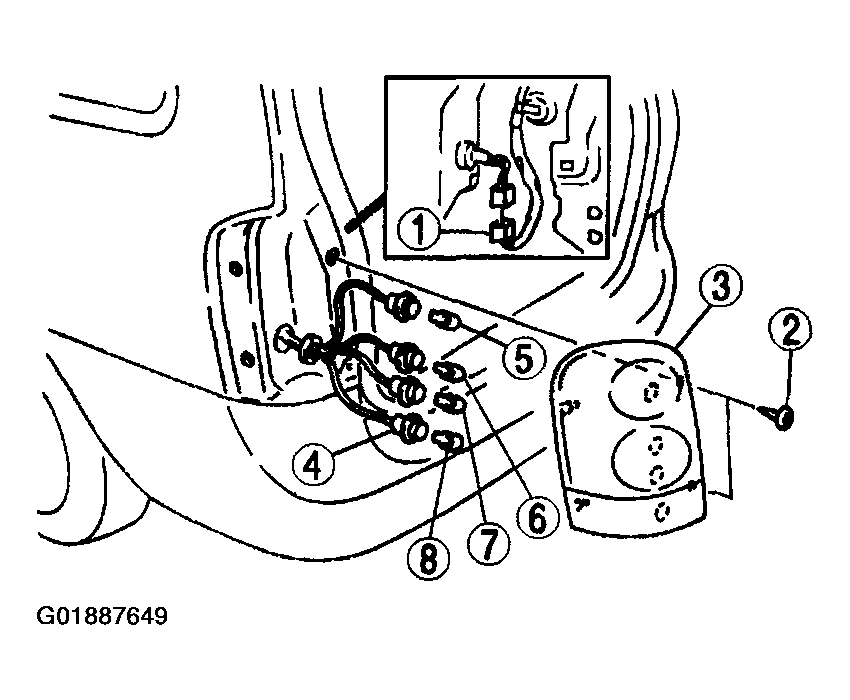

    Fig 2: Removal Order Of Rear Combination Light
    G01887649Courtesy of MAZDA MOTORS CORP.
