Console Removal/Installation

Disconnect the negative battery cable.
Remove the lower panel.
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the console lower cover.
Remove the screws.
Pull the console toward you, then disengage clips A, clips B and pins C from the dashboard.
Disconnect the connector, and remove the console.
Install in the reverse order of removal.

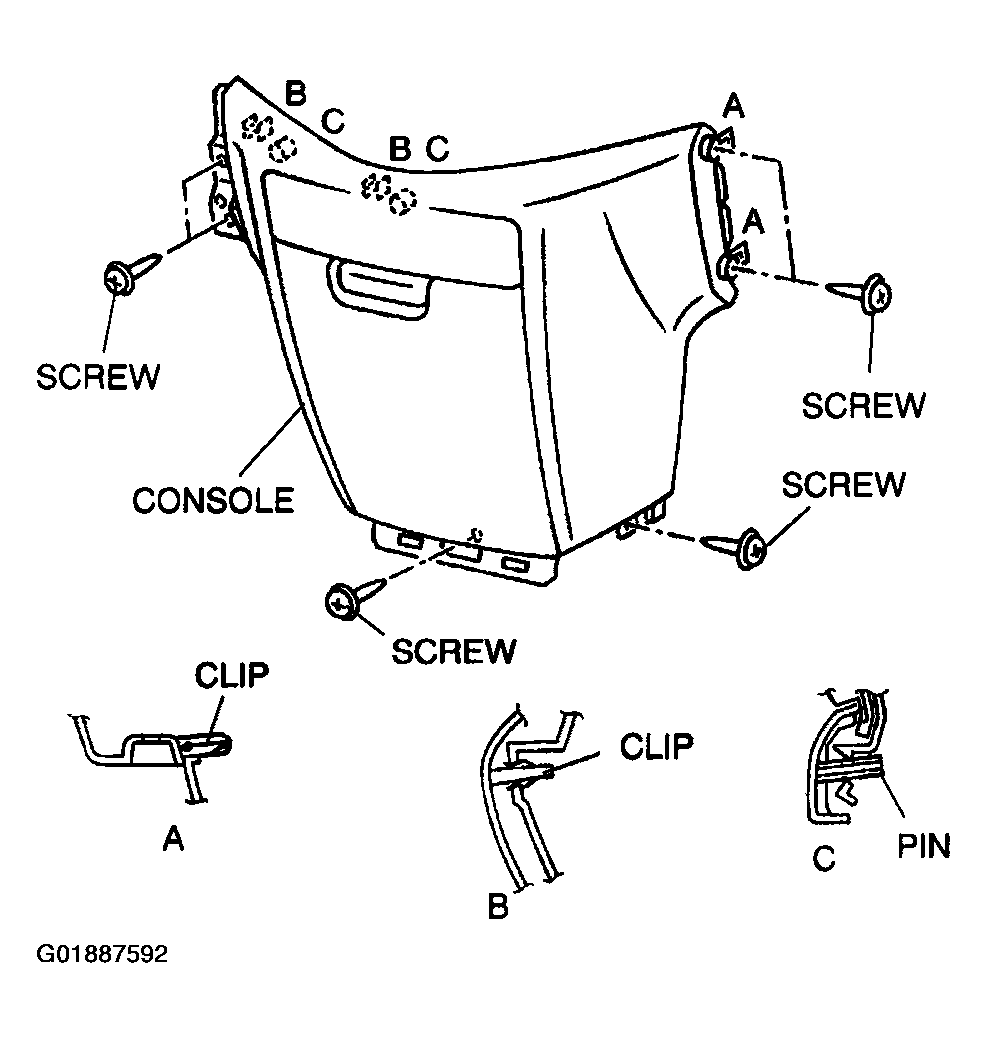

Fig 1: Disengaging Clips A, Clips B And Pins C From Dashboard
Courtesy of MAZDA MOTORS CORP.
