Ignition Switch Inspection

Disconnect the ignition switch connectors.
Inspect for continuity between the ignition switch terminals using an ohmmeter.
- If not as specified, replace the ignition switch.

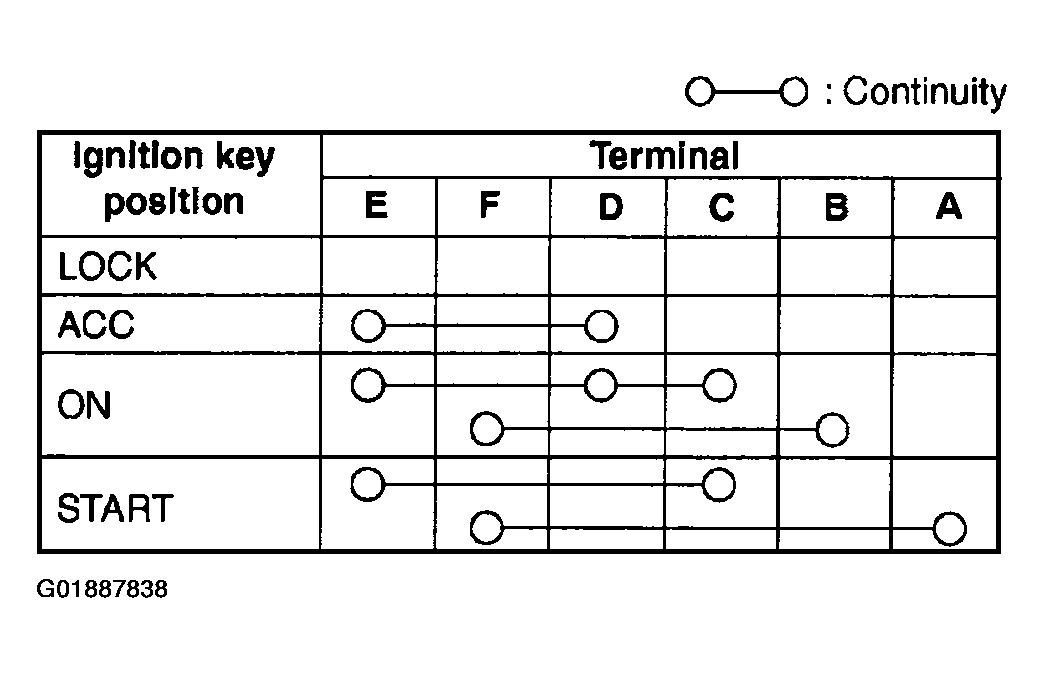

  Fig 1: Checking Ignition Switch Continuity
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Ignition Switch Terminals & Circuits
  Courtesy of MAZDA MOTORS CORP.
