Side cover removal note

  1. Remove the screw.
  2. Lift the side cover up in the direction shown by the arrow, then unhook it from the recliner knuckle.

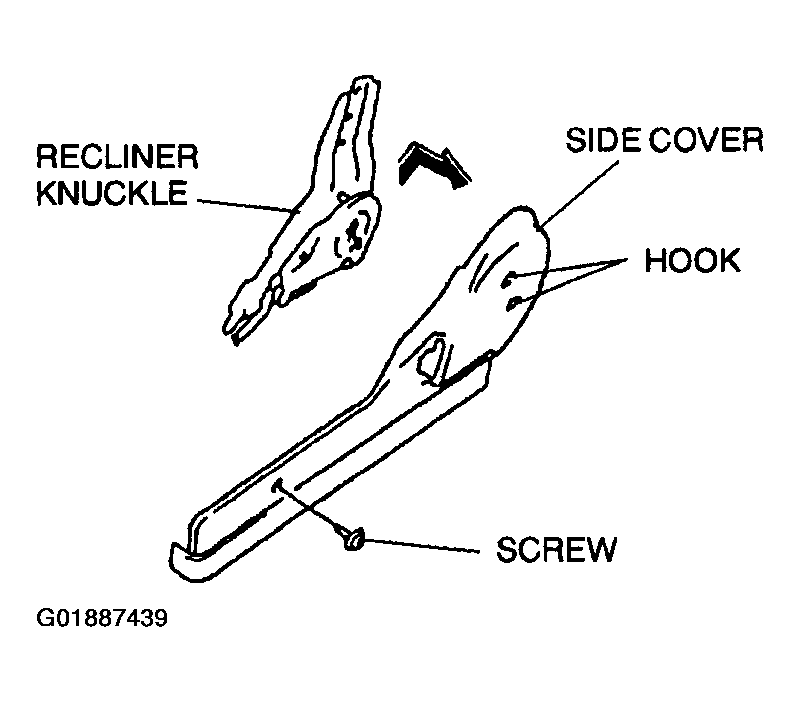

    Fig 1: Lifting Side Cover Up In Direction
    G01887439Courtesy of MAZDA MOTORS CORP.
