Rear Tilt Motor Inspection

Disconnect the rear tilt motor connector.
Inspect the rear tilt motor operation when B+ is applied to the terminals as shown.
- If not as specified, replace the seat cushion frame.

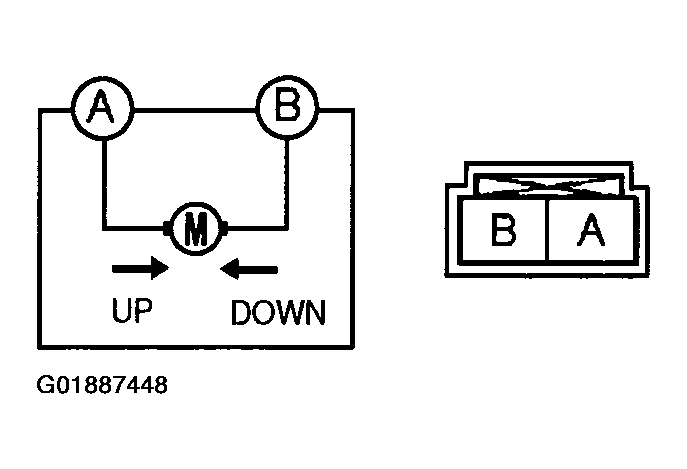

  Fig 1: Rear Tilt Motor Operation (1 Of 2)
  Courtesy of MAZDA MOTORS CORP.

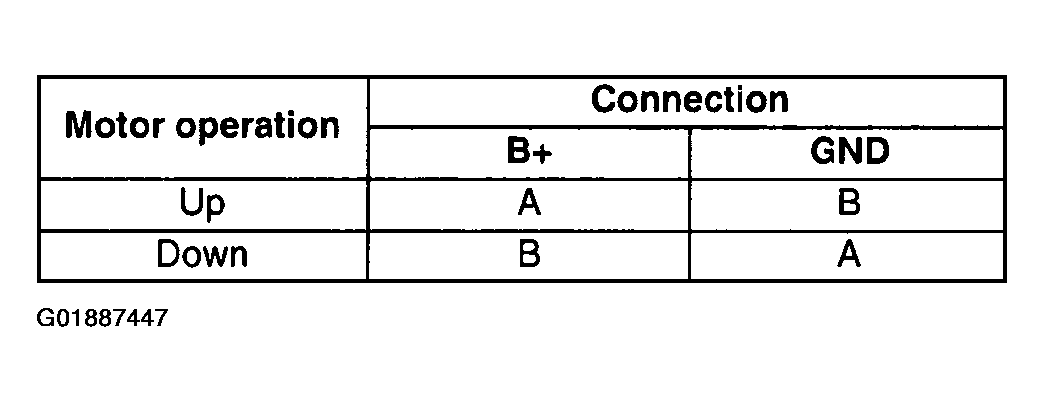

  Fig 2: Rear Tilt Motor Operation (2 Of 2)
  Courtesy of MAZDA MOTORS CORP.
