Third-Row Seat Removal/Installation: Seat

  1. Stow the third-row seat.
  2. Remove the bolts and then remove the third-row seat.
  3. Install in the reverse order of removal.

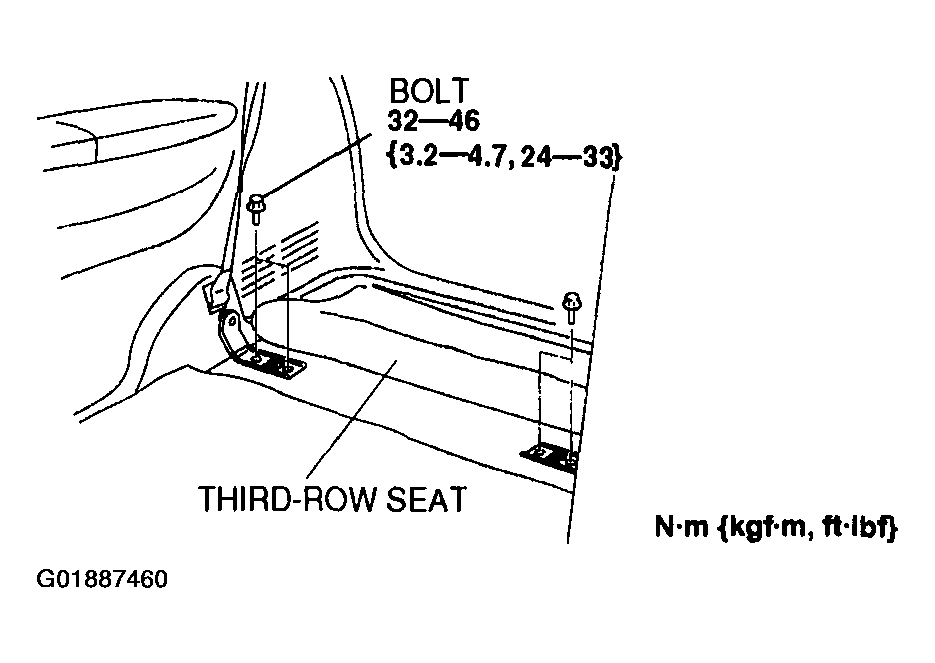

    Fig 1: Removing Bolts And Third-Row Seat
    G01887460Courtesy of MAZDA MOTORS CORP.
