Front Power Window Regulator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figures.

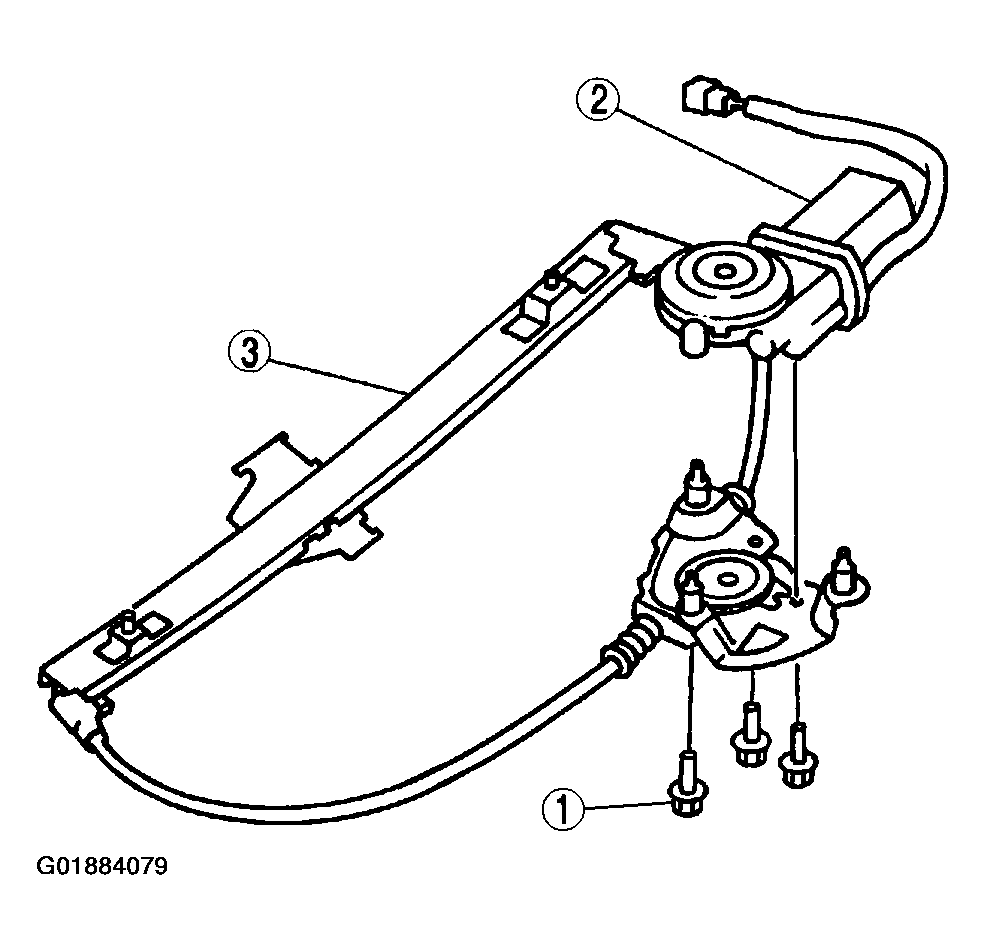

    Fig 1: Disassembling Front Power Window Regulator
    G01884079Courtesy of MAZDA MOTORS CORP.
    Fig 2: Front Power Window Regulator Disassembly Sequence
    G01884078Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
