Rear Power Window Regulator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure below.

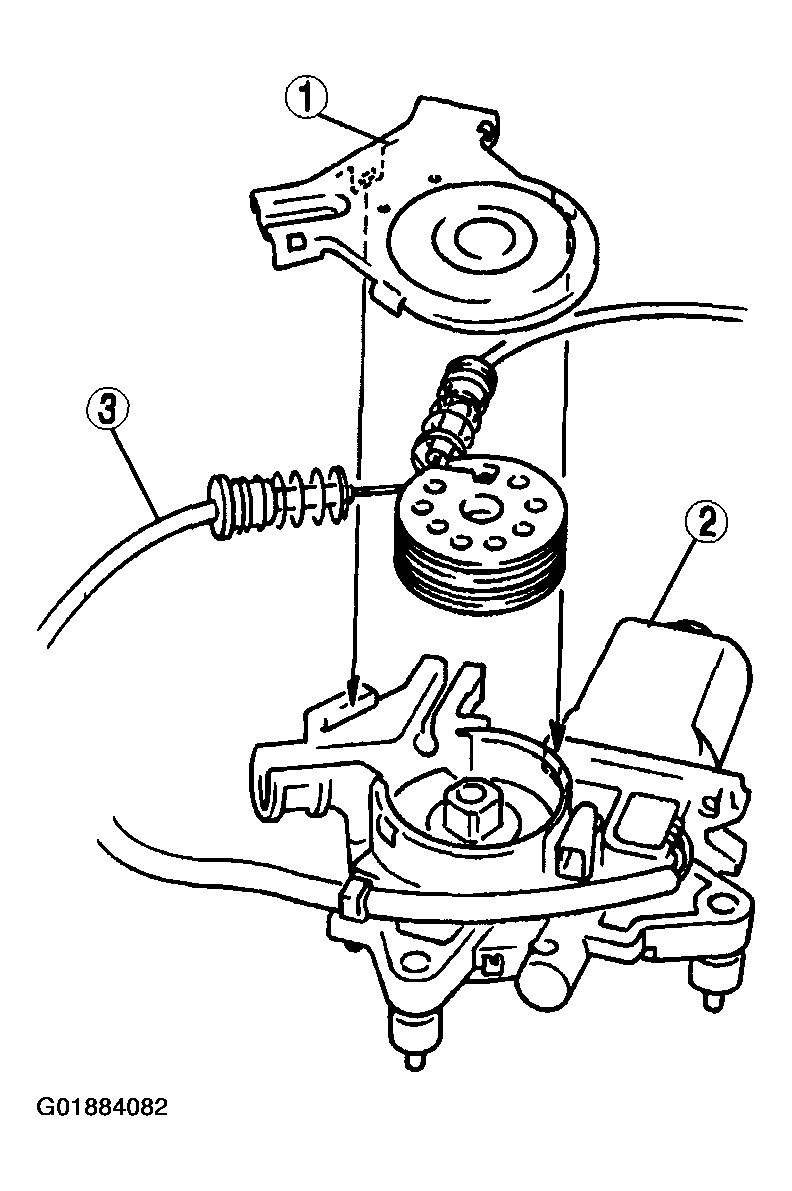

    Fig 1: Disassembling Rear Power Window Regulator
    G01884082Courtesy of MAZDA MOTORS CORP.
    Fig 2: Rear Power Window Regulator Disassembly Sequence
    G01884081Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
