Abs And TCS Diagram
Abs And TCS Diagram

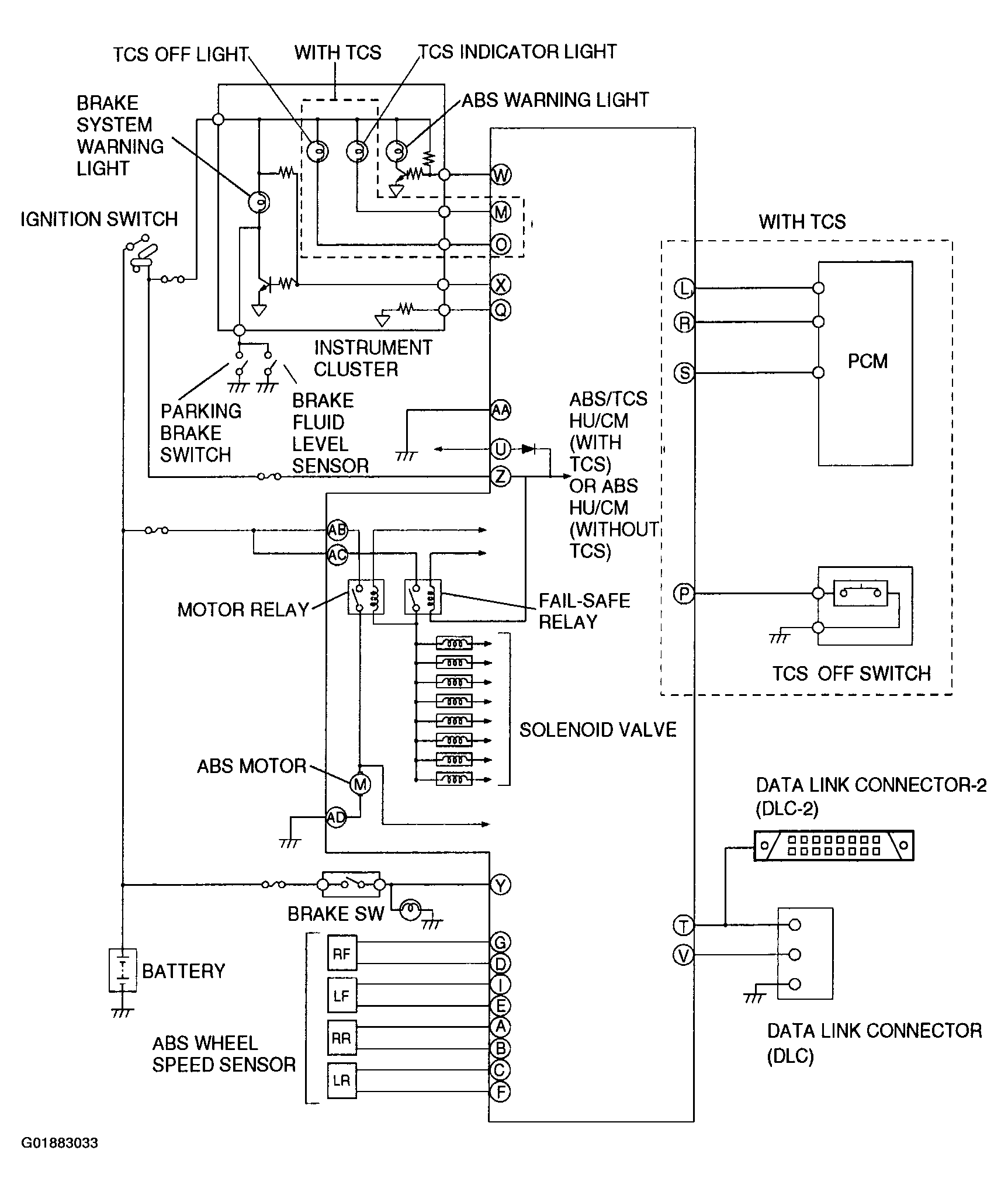

Fig 1: ABS And TCS Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
