Locknut Removal Note

  1. Raise the staked portion of the locknut using a small cape chisel and a hammer.
  2. Lock the hub by applying the brakes.
  3. Remove the locknut.

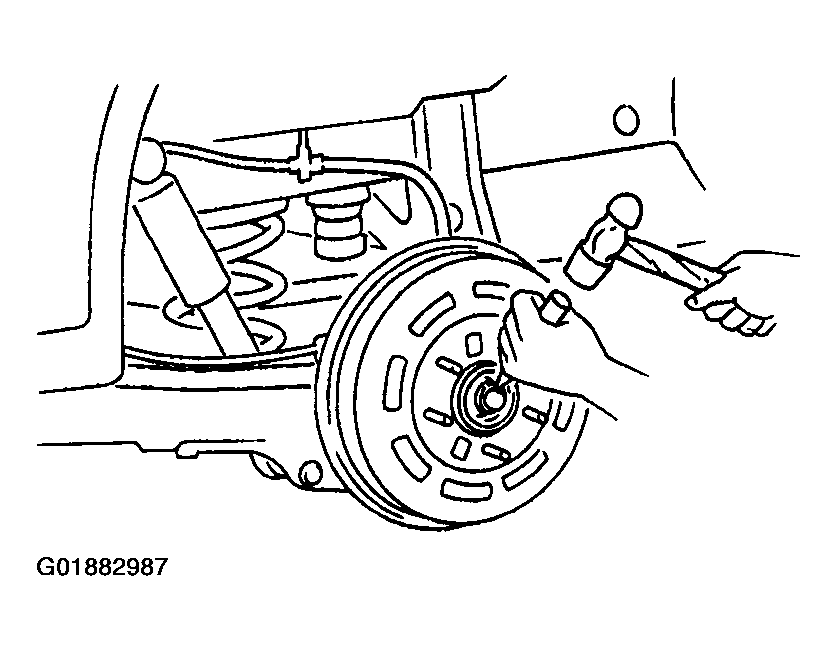

    Fig 1: Removing Locknut
    G01882987Courtesy of MAZDA MOTORS CORP.
