Audio Control Switch Connector End View
Audio Control Switch Connector End View

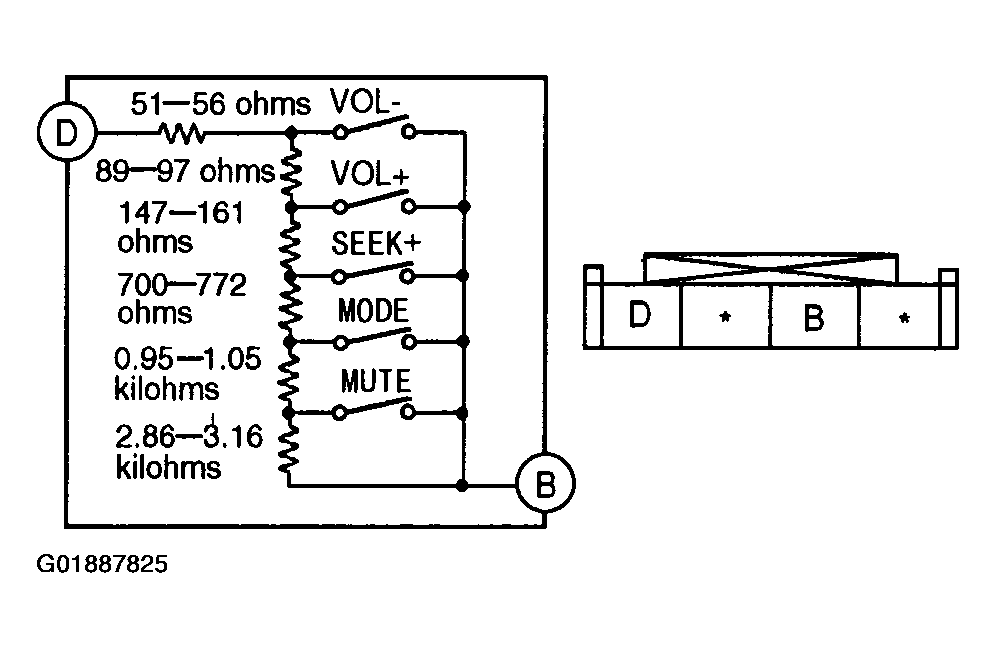

Fig 1: Audio Control Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
