Power Window Subswitch Connector End View
Power Window Subswitch Connector End View

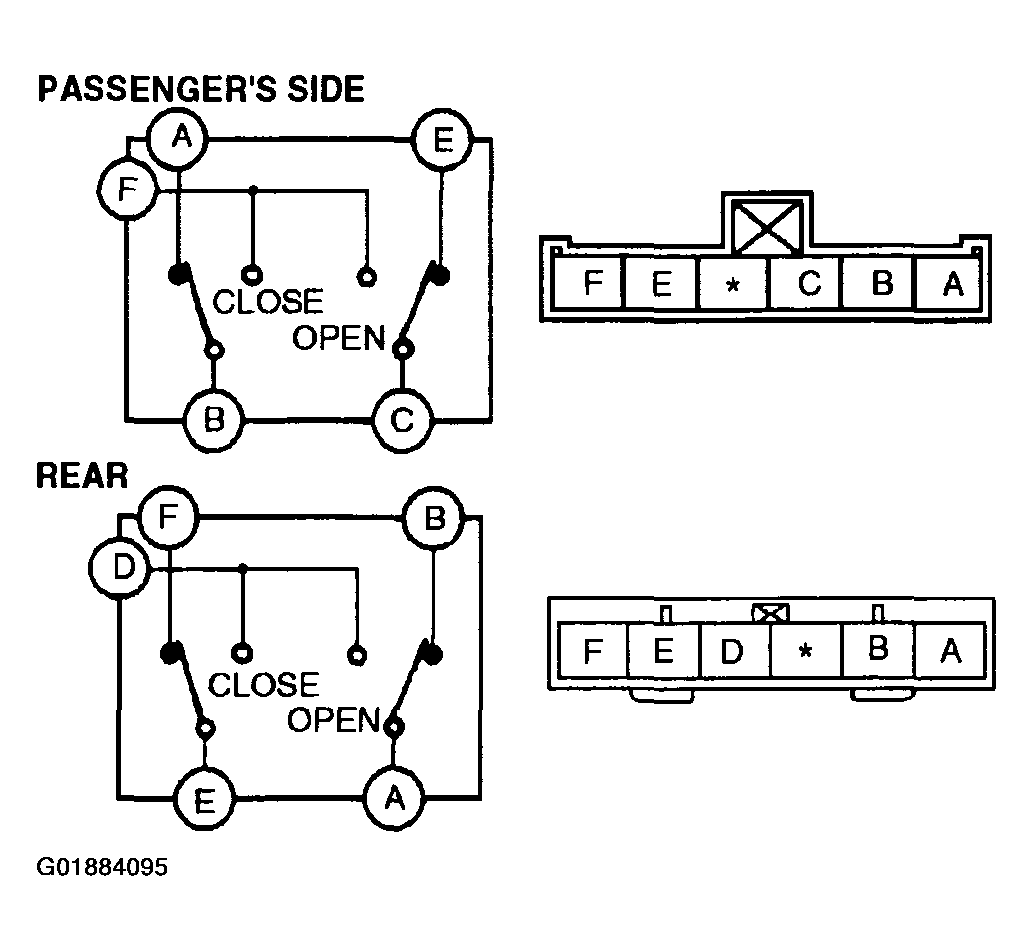

Fig 1: Power Window Subswitch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
