Rear Wiper And Washer Switch Connector End View
Rear Wiper And Washer Switch Connector End View

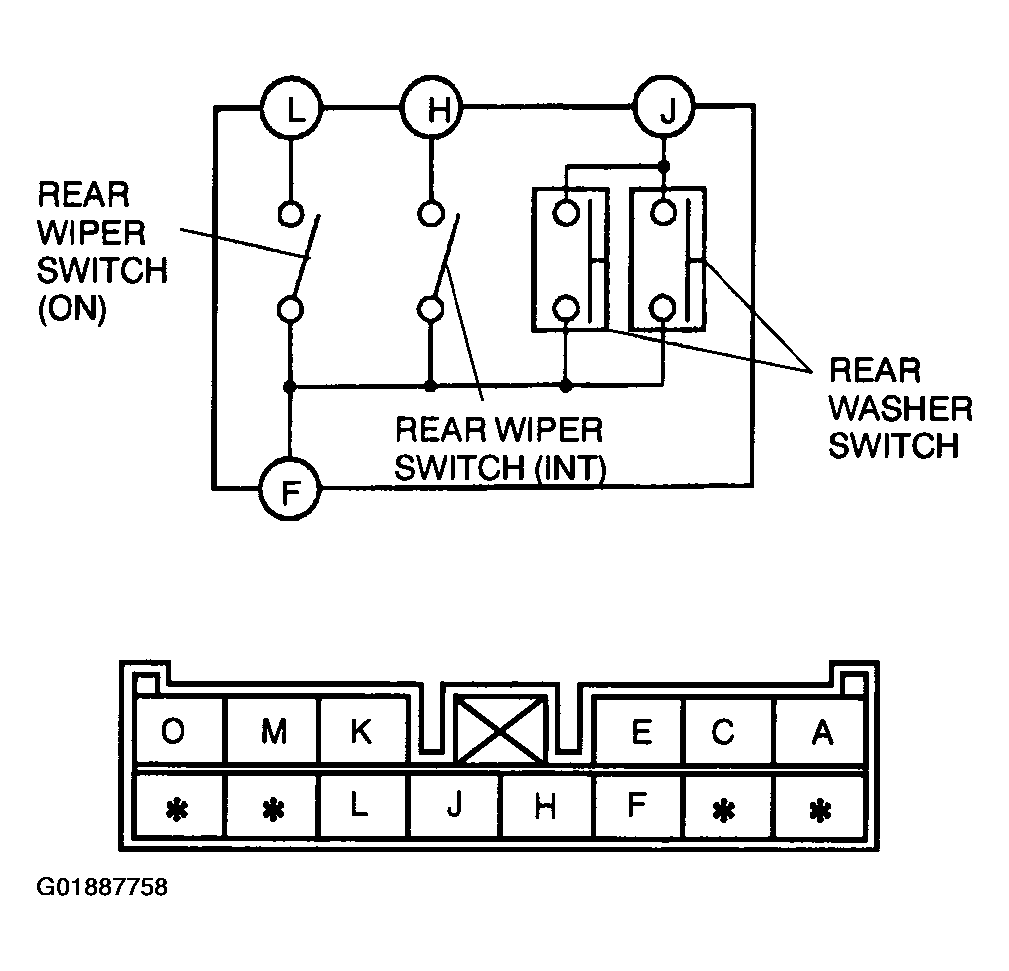

Fig 1: Rear Wiper And Washer Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
