OEM Connector End Views
›
Connector End Views
›
Wiper And Washer Switch Connector End View
Wiper And Washer Switch Connector End View

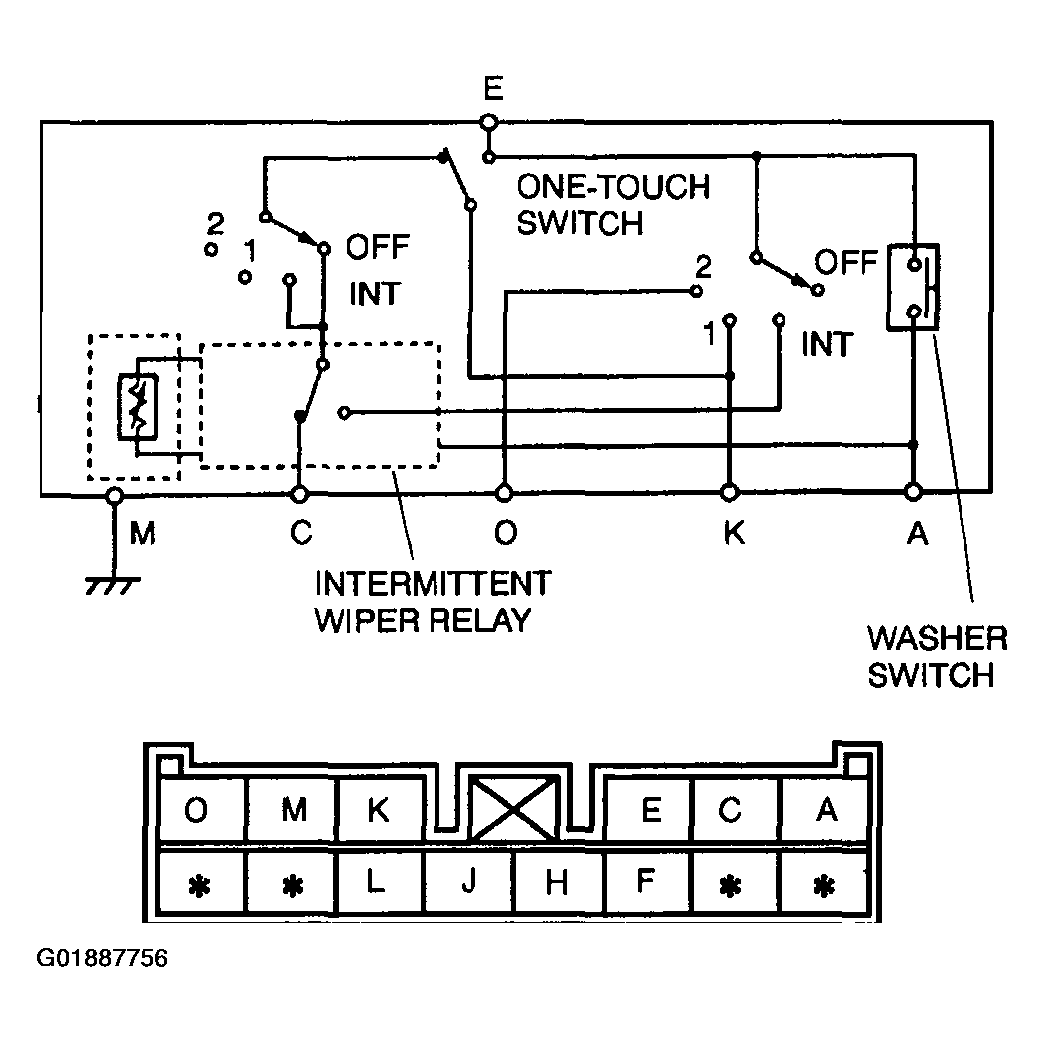

Fig 1: Wiper And Washer Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
