Instrument Cluster Input/Output Check Mode
›
Operating Order
Operating Order

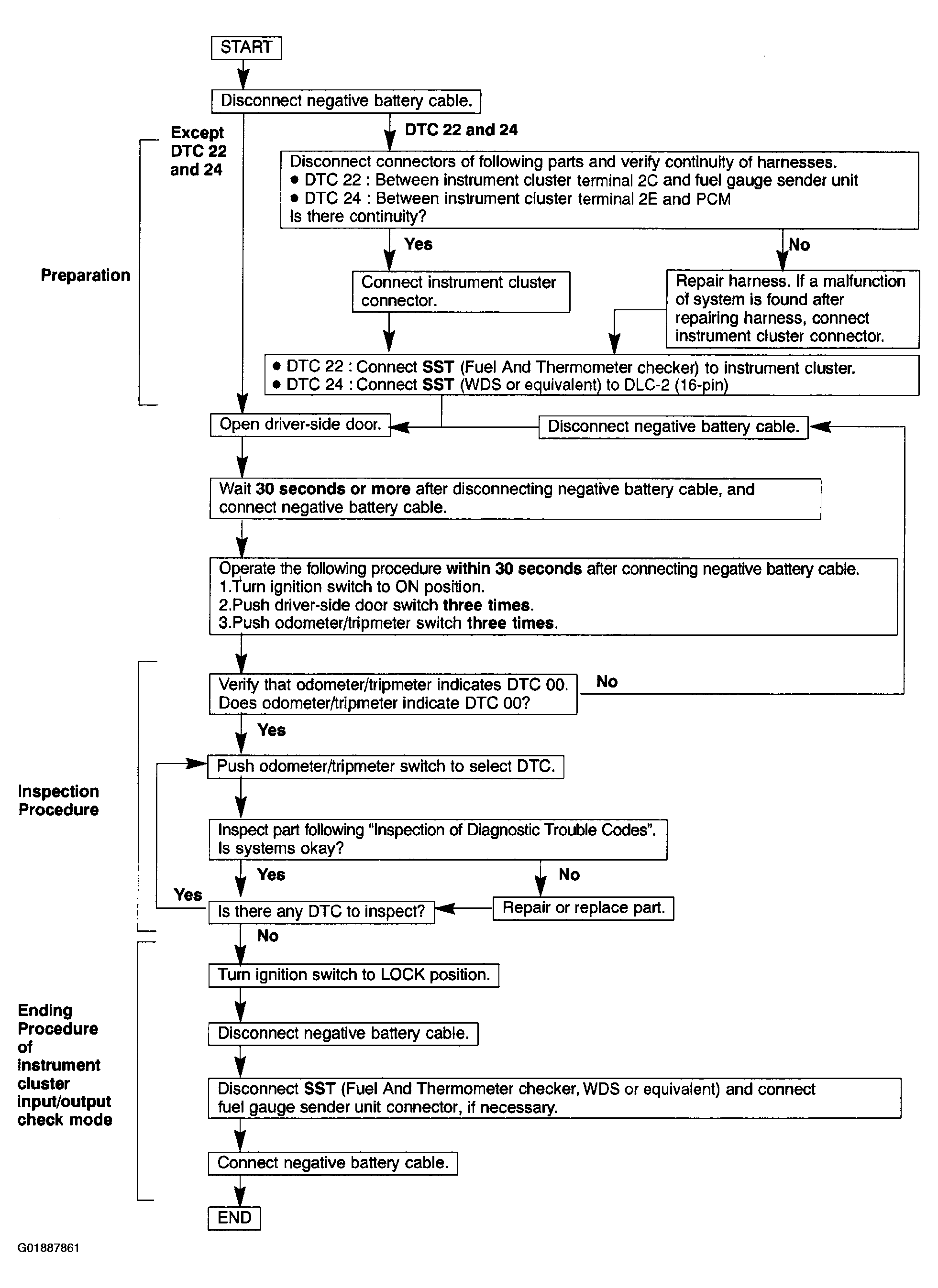

Fig 1: Instrument Cluster Input/Output Diagnostic Procedure Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
