Power Sliding Door (PSD) System Connector End View
Power Sliding Door (PSD) System Connector End View

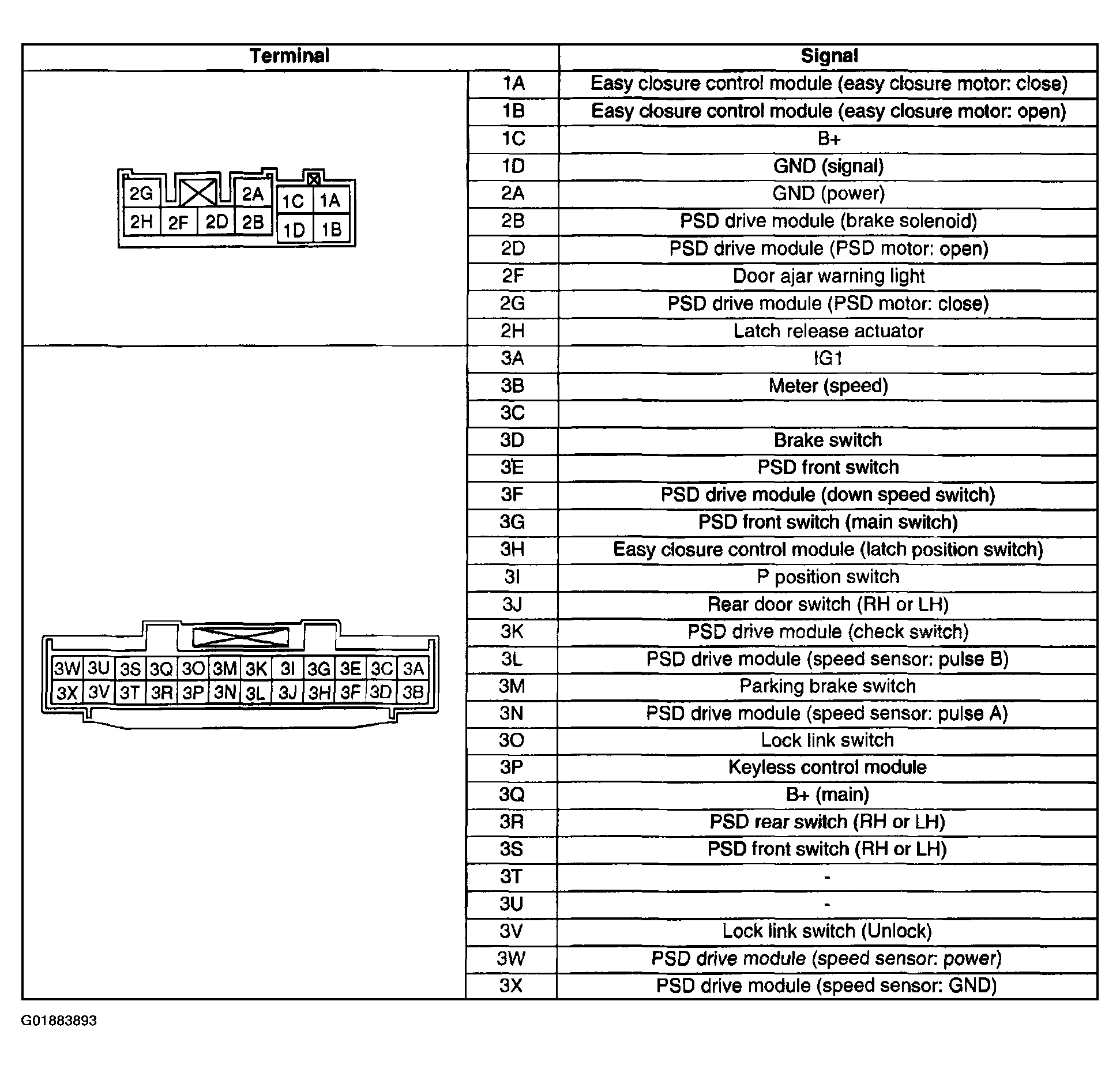

Fig 1: Power Sliding Door (PSD) System Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
