Engine Coolant Level Inspection

Verify that the coolant level in the coolant reservoir is between the F and L marks.
- If the engine coolant level is below L, remove the cooling system cap and add coolant. (See COOLING SYSTEM SERVICE WARNINGS .)

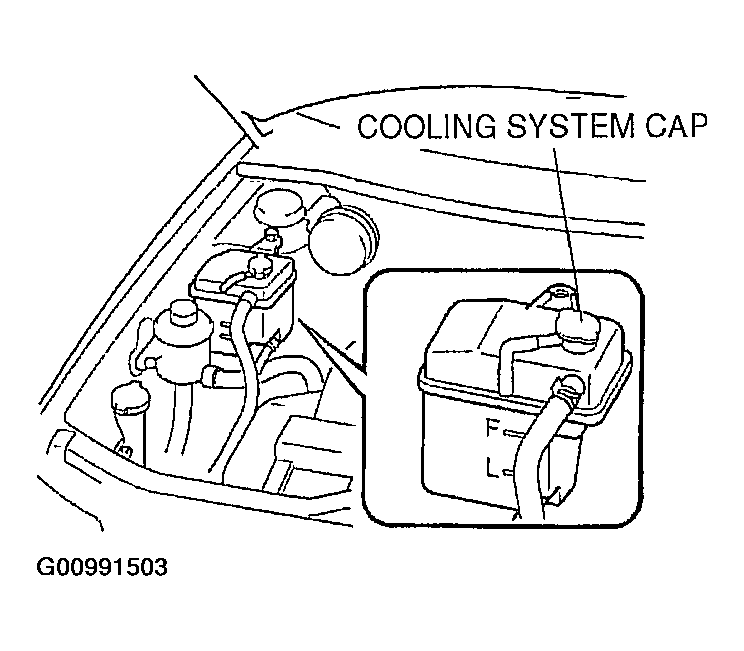

  Fig 1: Locating Cooling System Cap
  Courtesy of MAZDA MOTORS CORP.
