Oil Pan Installation Note

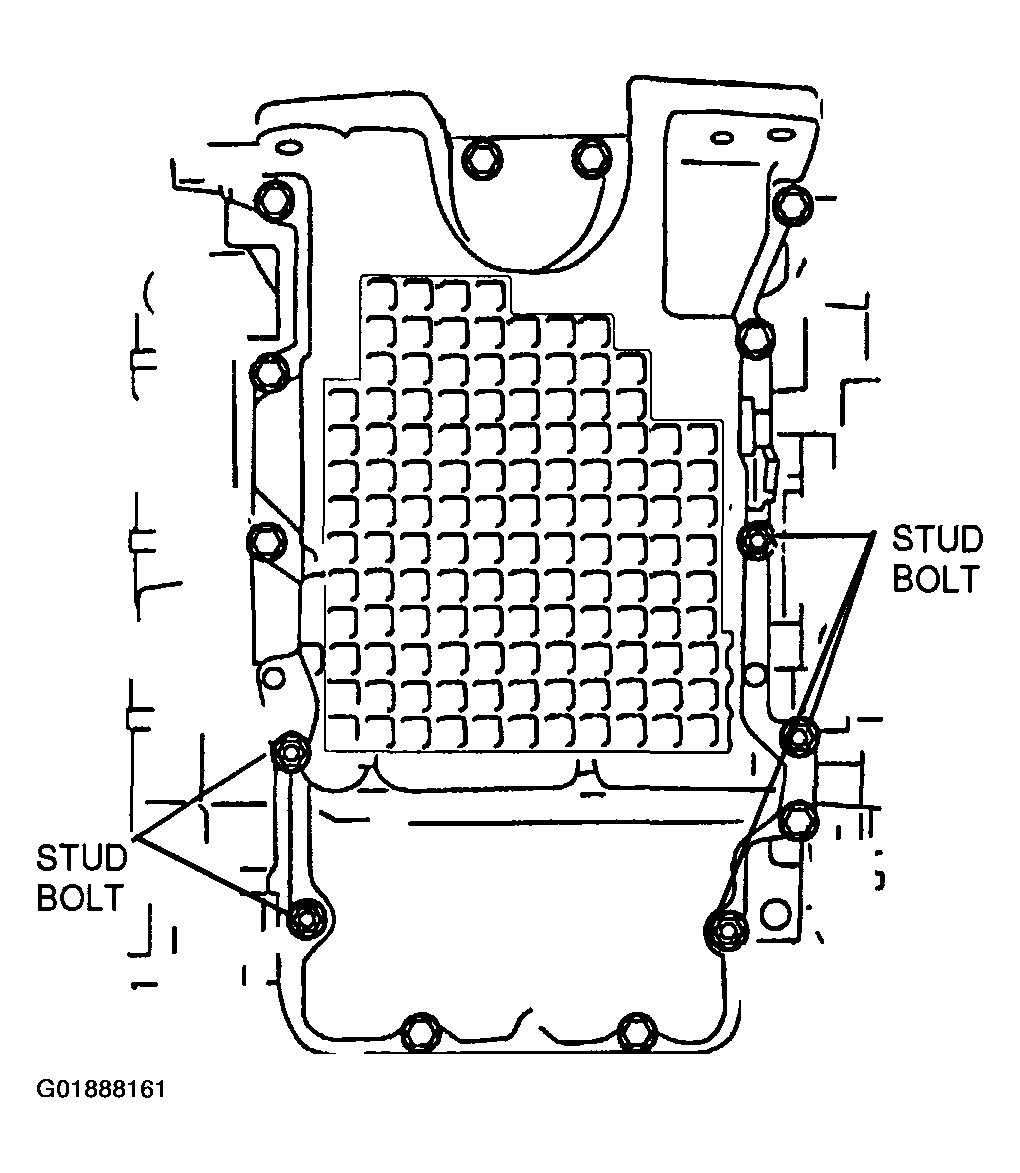

Install the oil pan bolts and studs as shown.

Fig 1: Installing Oil Pan Bolts And Studs
Courtesy of MAZDA MOTORS CORP.
Tighten the transaxle housing bolts to oil pan.

Fig 2: Tightening Transaxle Housing Bolts To Oil Pan
Courtesy of MAZDA MOTORS CORP.

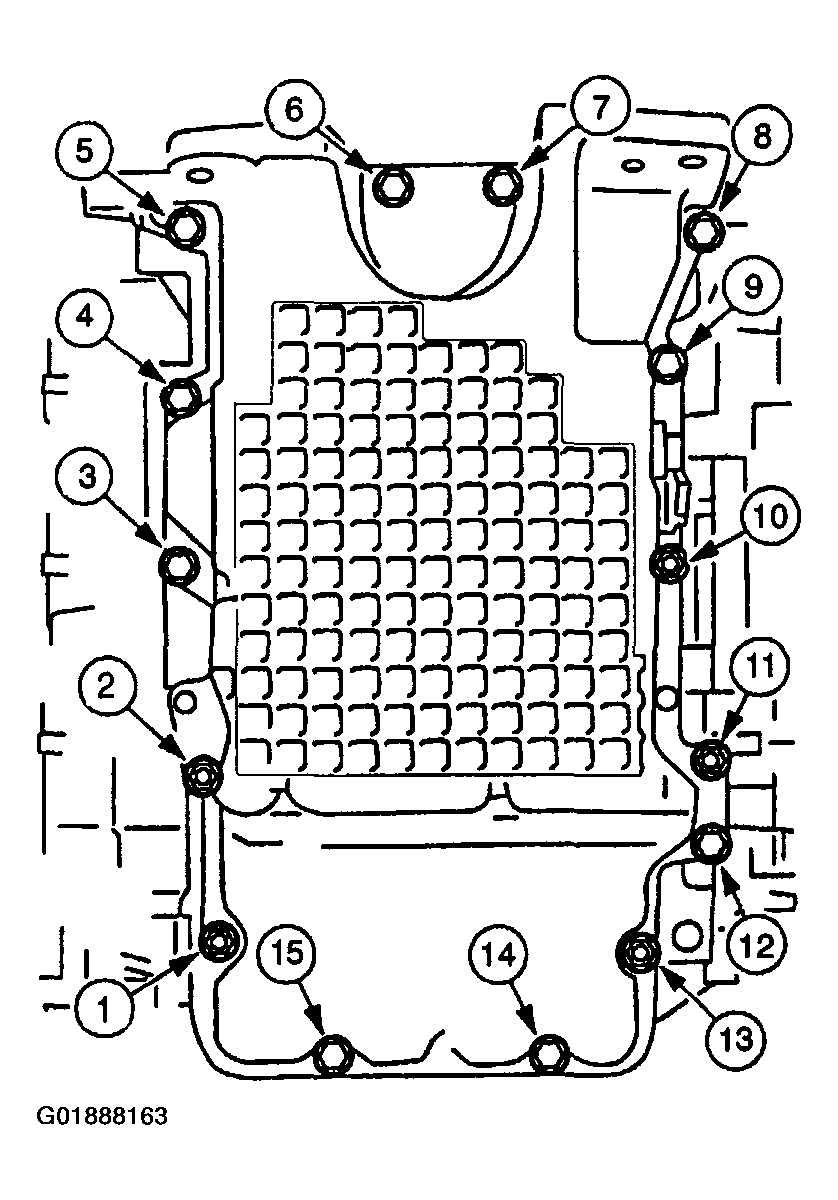

Tighten the oil pan bolts and studs in several passes in the order shown.

Fig 3: Oil Pan Bolts And Studs Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
