Home › Mazda › 2003 › MPV ES › Repair and Diagnosis › Engine Mechanical › Mechanical › Engine Mechanical 3.0L Service Information › Location Index

Location Index

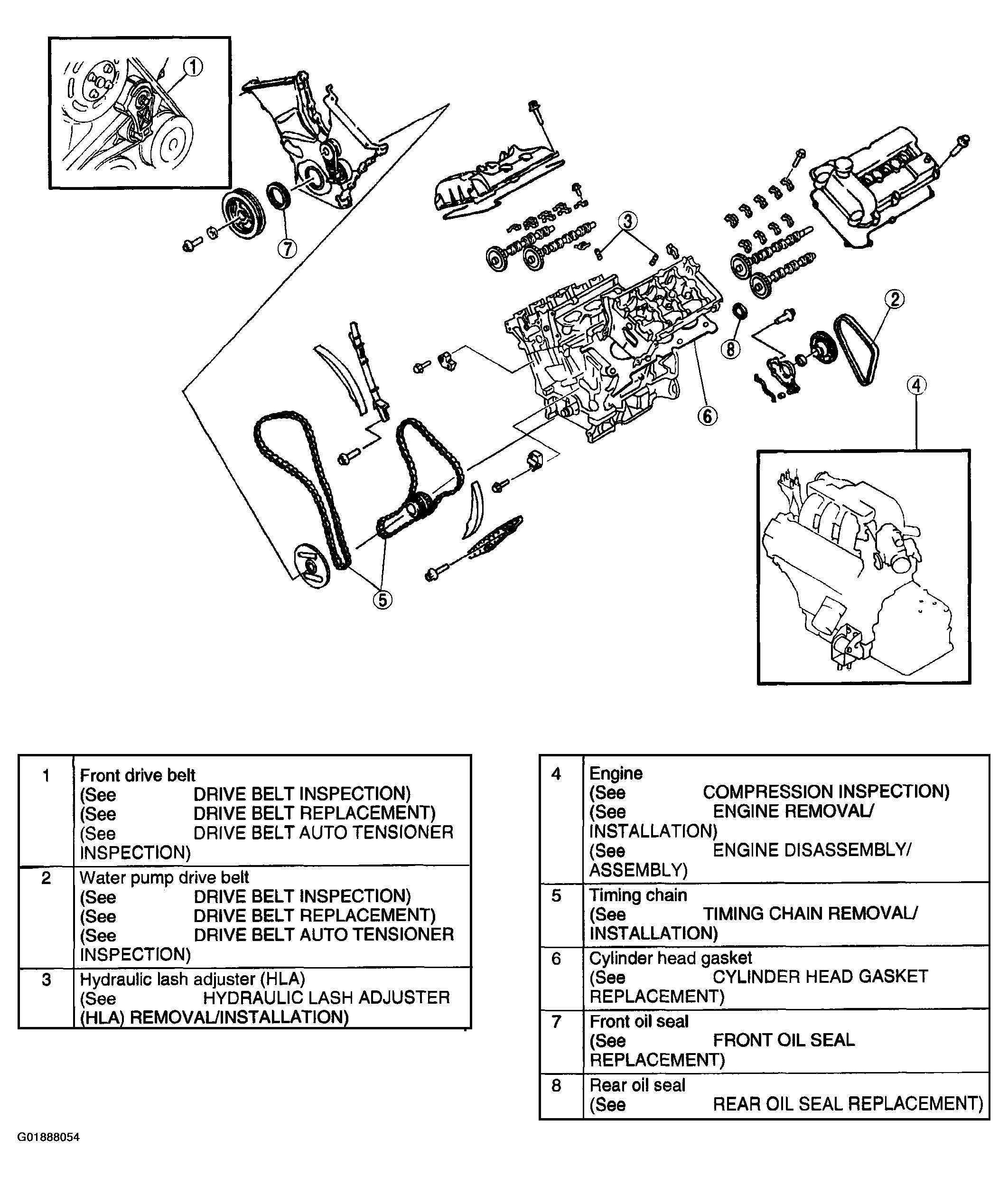

Fig 1: Locating Mechanical Component Index
G01888054Courtesy of MAZDA MOTORS CORP.
